Single-Bail Drilling Swivel VB
About the product

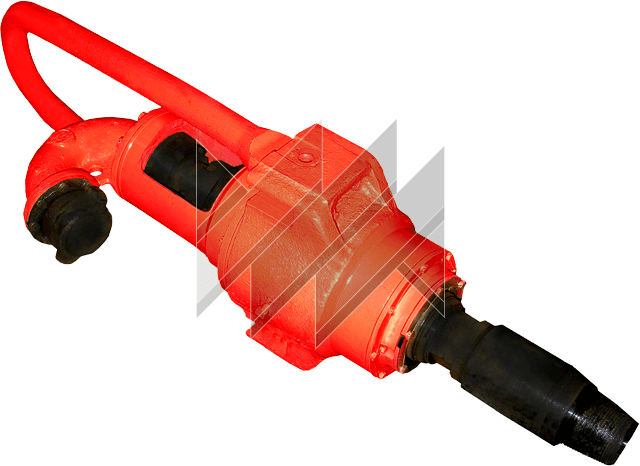

The VB Drilling Swivel is a highly loaded structure designed to suspend the rotating drilling assembly while simultaneously supplying flushing fluid into the drill pipe string during well drilling operations
- Load
- 20-125
- Pressure
- 21-25
- Rotational Speed
- 200
Technical specifications
| Parameter | VB-20 | VB-60 | VB-80 | VB-100 | VB-125 |
|---|---|---|---|---|---|
| Permissible stem load, kN (tf) | 200 (20) | 600 (60) | 800 (80) | 1000 (100) | 1250 (125) |
| Working pressure of circulating fluid, MPa (atm) | 21 (210) | 21 (210) | 21 (210) | 25 (250) | 25 (250) |
| Stem rotation speed, s⁻¹ (rpm) | 3.33 (200) | 3.33 (2000) | 3.33 (200) | 3.33 (200) | 3.33 (200) |
| Stem bore diameter, mm | 60 | 64 | 75 | 75 | 75 |
| Overall dimensions, mm | 1410×412×390 | 1708×424×454 | 1750×490×460 | 1860×590×550 | 1860×590×550 |
| Connection thread: | |||||
| — stem thread according to GOST 631-75 | BT-102, left-hand* | BT-102, left-hand* | BT-121, left-hand* | BT-127, left-hand* | BT-127, left-hand* |
| — sub thread (tool joint) according to GOST 28487-90 | 3-88, left-hand* | 3-88, left-hand* | 3-88, left-hand* | 3-133, left-hand* | 3-133, left-hand* |
| — side inlet thread according to GOST 633-80 | Tubing 73 | Tubing 73 | Tubing 89 | Tubing 89 | Tubing 89 |
| Total package weight, kg | 220 | 220 | 340 | 420 | 420 |
*Right-hand thread is available upon customer request.

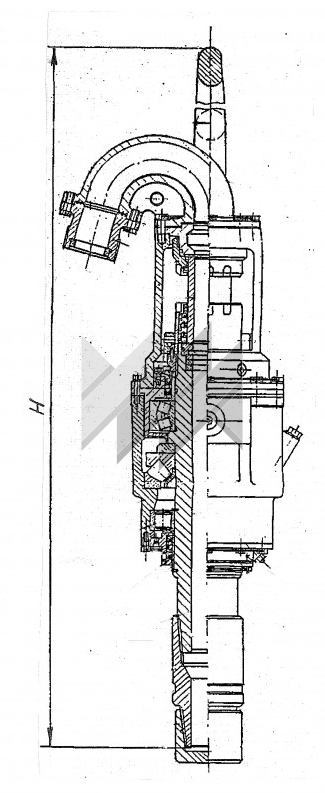

Description
The VB drilling swivel is a heavy-duty assembly designed to support the rotating drill string while simultaneously supplying drilling fluid into the drill pipe string during well drilling operations.
The VB drilling swivel (A60/80M1.40.00.000 assembly) is designed to provide free rotation of the drilling tool suspended from the traveling block while supplying drilling fluid to the bottom of the well through the drill pipe string.
The swivel is intended for operation in temperate and cold climatic regions at ambient temperatures ranging from -45°C to +45°C.
The product is supplied with all required certification documents and fully complies with the Safety Regulations for the Oil and Gas Industry PB 08-624-03.
Swivel bail extensions.
Designed to increase the length of the swivel bail when additional space is required inside the bail opening for installing a telemetry system lubricator.
During operation, the pair of extensions is installed in the swivel housing in place of the original bail ends, and the swivel bail ends are connected to the extensions using pins.
