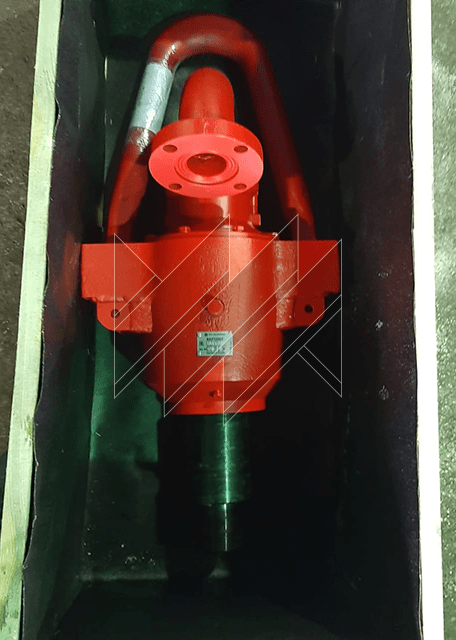

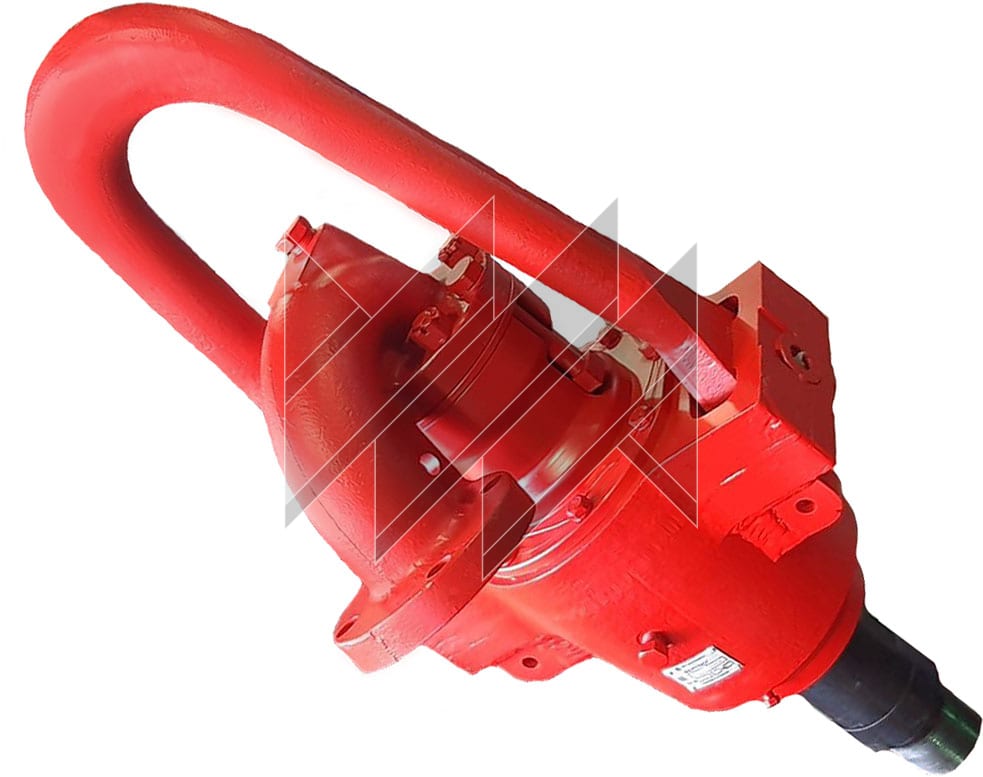

Drilling Swivel BA-15.33GSB
About the product
The BA-15.33GSB Single-Stand Drilling Swivel is designed to supply flushing fluid from the pump to the bottom of the well during rotary and turbine drilling, while providing the ability to rotate the drill pipe string
- Load
- 20
- Pressure
- 15
- Rotational Speed
- 200
Technical specifications
| Parameter | Value |
|---|---|
| Bore Diameter, mm | 50 |
| Load Capacity, kN (tf) | 200 (20) |
| Air Pressure, MPa (kgf/cm²) | 0.7 (7) |
| Maximum Drilling Fluid Pressure, MPa (atm) | 15 (150) |
| Stem Rotation Speed, s⁻¹ (rpm) | 3.33 (200) |

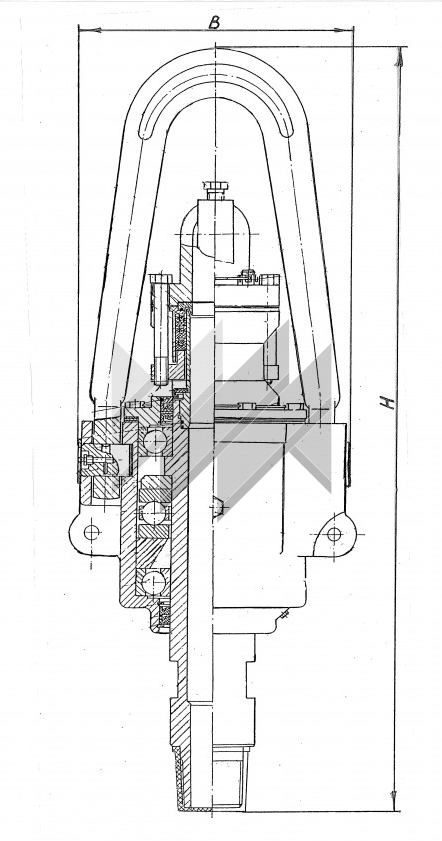

| Swivel Overall Dimensions, mm: | |
| — Height | 1160 |
| — Width (including side outlet) | 910 |
Description
The BA-15.33GSB single-bail drilling swivel is designed to supply drilling fluid from the pump to the bottom of the well during rotary and turbine drilling operations while allowing the drill string to rotate. It is intended for use in temperate and cold climatic regions (Climatic Region L2) in accordance with GOST 16350-80.
