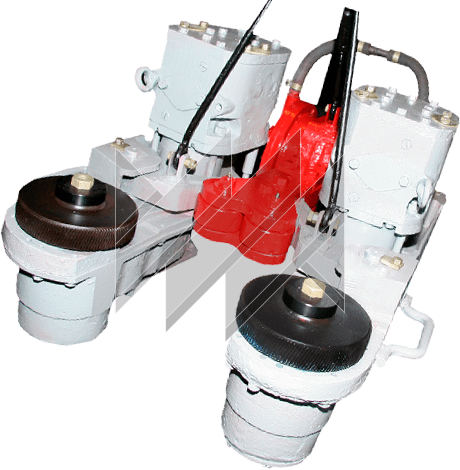

PBK-4 Pneumatic Tong

About the product

TU 05273837.303838.023

The PBK-4 Pneumatic Power Tong is designed for mechanical make-up, break-out, and final tightening of drill pipe and casing connections during running and pulling operations in rotary and turbine drilling

Diameter: 73-245

Frequency: 1,04

Torque: 12000

All specifications

Technical specifications

Parameter	Value
Maximum torque, N·m	12000
Nominal diameters of pipes for make-up and break-out, mm
— drill pipes	73–168
— casing pipes	114–245
Rotation speed of the pipe gripping device (rollers) during make-up and break-out, s^-1	1.04
Number of drive rollers	2
Overall dimensions of the tong, mm	1200×870×930
Tong weight, kg	670

Description

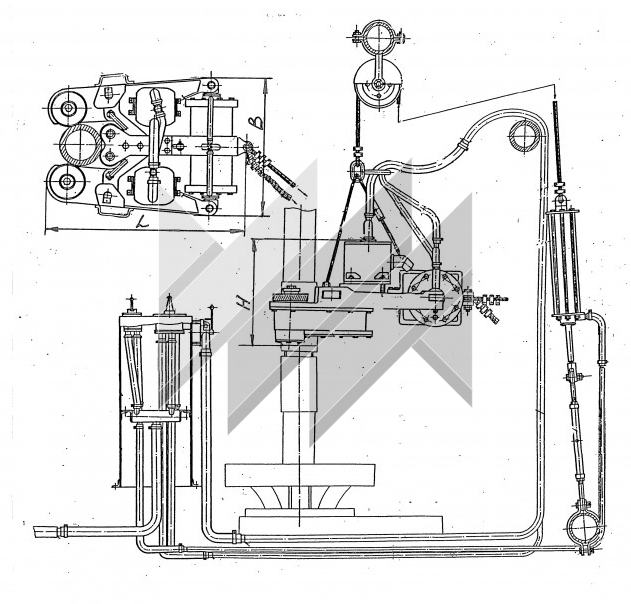

The PBK-4 Pneumatic Suspended Power Tong is designed for the mechanical make-up, break-out, and final tightening of drill pipe and casing pipe threaded connections during tripping operations in rotary and turbine drilling.

The tong speeds up the make-up and break-out of drill pipe and casing pipe using a pneumatic drive without the need to replace jaws. It operates within the range of 73–168 mm for drill pipes and up to 426 mm for casing pipes. Final tightening is performed using mechanical tongs. The unit increases operational efficiency while maintaining a relatively low weight and does not require the use of environmentally hazardous components.

Designed for operation in temperate macroclimatic regions in accordance with GOST 16350-80.
