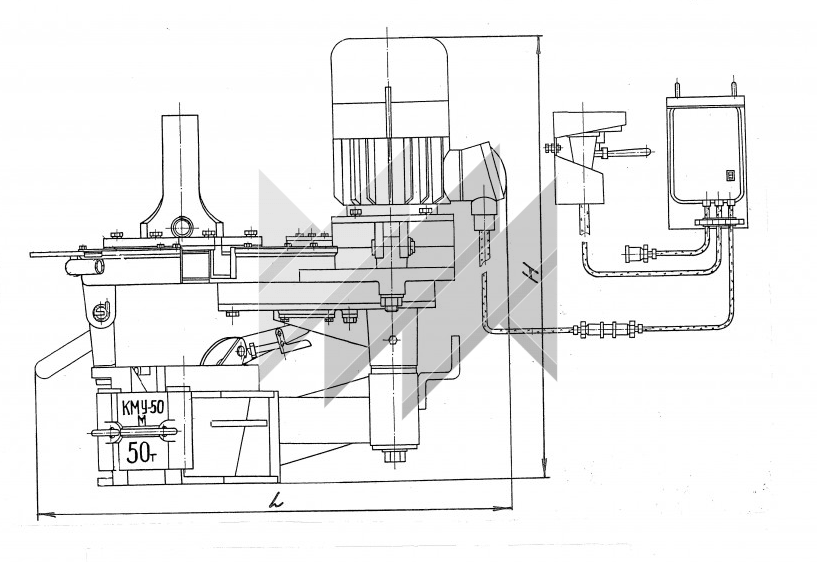

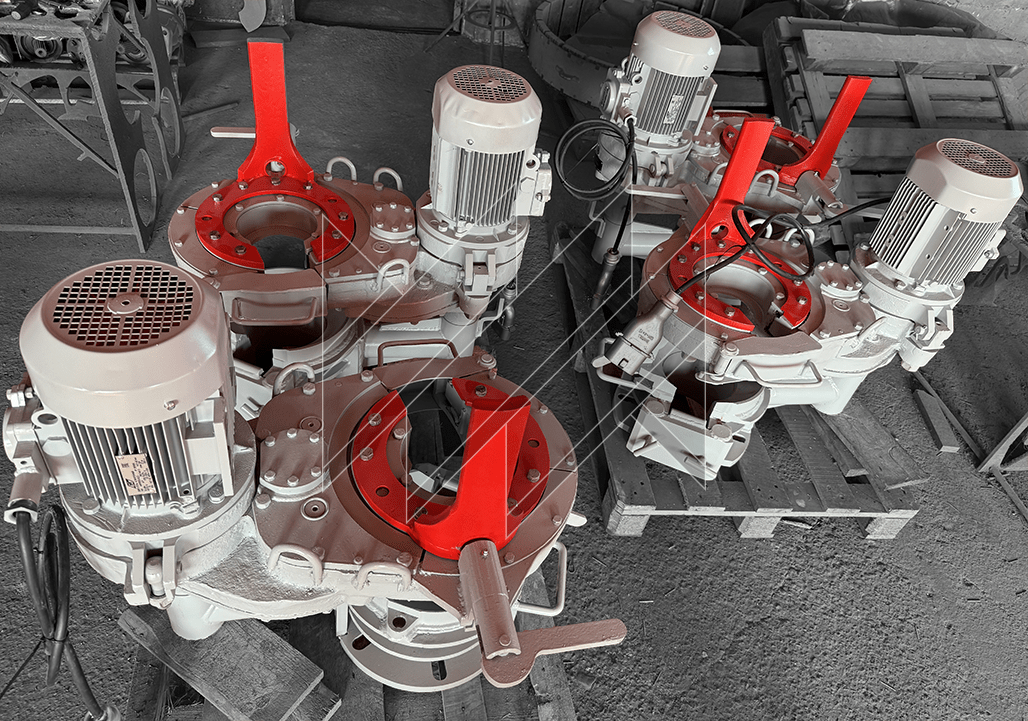

KMU-50M-GP, KMU-50M Universal Mechanical Tong
About the product
The KMU Universal Power Tong is designed to mechanize pipe make-up and break-out operations. The KMU-GP version is intended for use with hydraulic servicing units such as the A-50M and UPA-60
- Diameter
- 50-114
- Frequency
- 60
- Torque
- 4500-4700
Technical specifications
| Parameter | KMU-50M | KMU-50M-HP |
|---|---|---|
| Spider load capacity, t | 50 | 50 |
| Pipe diameters for make-up and break-out | 48, 60, 73, 89, 114 | 48, 60, 73, 89, 114 |
| Maximum torque, N·m | 4700 | 4500 |
| Carrier rotation speed, rpm | 60 | 60 |
| Drive motor | AIM 100S 4U2.5 electric motor | G15-24 hydraulic motor |
| Hydraulic system pressure, MPa | — | 12.5 |
| Weight of assembled unit, kg, max. | 360 | 350 |
| Weight of complete set, kg, max. | 410 | 400 |
| Overall dimensions, mm | 960×680×930 | 1020×680×800 |
Custom manufacturing is available upon request:
- Wedge block 60 KMU-50.VM.02.02.000-01
- Wedge block 73 KMU-50.VM.02.02.000-02
- Wedge block 89 KMU-50.VM.02.03.000
Description
The KMU Universal Mechanical Tong is designed to mechanize pipe make-up and break-out operations (the KMU-HP version is intended for use with hydraulic workover units such as the A-50M and UPA-60), as well as to hold tubing strings during routine and major well servicing operations on wells equipped with all types of production equipment, including electric submersible pumps. The tong is intended for operation in temperate and cold macroclimatic regions (Category I2) in accordance with GOST 16350-80.
