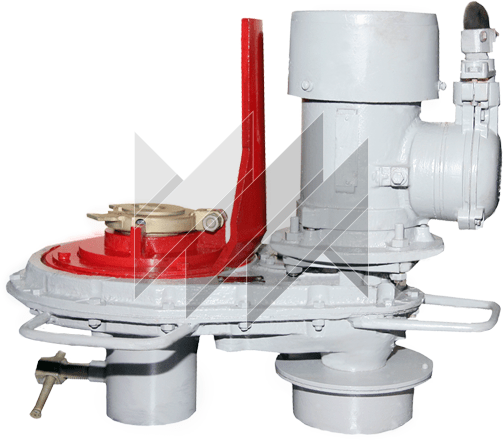

KShE Mechanical Rod Tong

About the product

TU 3668-002-05273837-2018

The KShE Sucker Rod Power Tong is designed for the mechanized make-up and break-out of sucker rods manufactured in accordance with GOST 13877-80 during running and pulling operations in routine well servicing. It is suitable for operation in temperate and cold climatic regions (Climatic Region I2)

Diameter: 16-25

Frequency: 100

Torque: 980

All specifications

Technical specifications

Parameter	Value
Rated axial load, kN	100
Nominal sucker rod diameters according to GOST 13877-80, mm	16, 19, 22, 25
Maximum torque, N·m	980
Carrier rotation speed, min^-1, not less than	100
Power consumption, kW, max.	0.75
Supply voltage, V	380
Weight of assembled tong, kg	60
Weight of complete set, kg	145
Overall dimensions, mm	610×430×470
Tong drive	Electric, powered from the field power supply

* Upon customer request, a spring-loaded version is available with a stroke of up to 400 mm, depending on the spring used.

Description

The KSHE Mechanical Rod Tong is designed for the mechanized make-up and break-out of sucker rods in accordance with GOST 13877-80 during tripping operations in routine well servicing in temperate and cold macroclimatic regions (Region L2) in accordance with GOST 16350-80. The tong is electrically driven from the field power supply network. It is equipped with a V71V4 explosion-proof electric motor.
