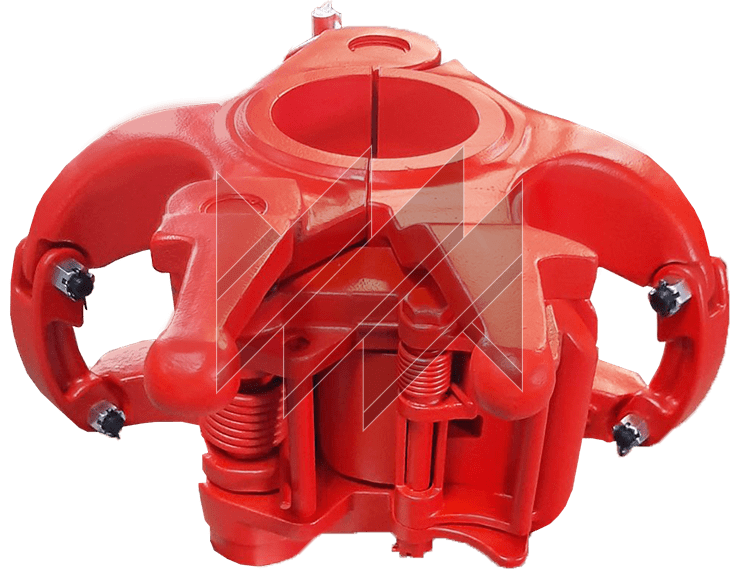

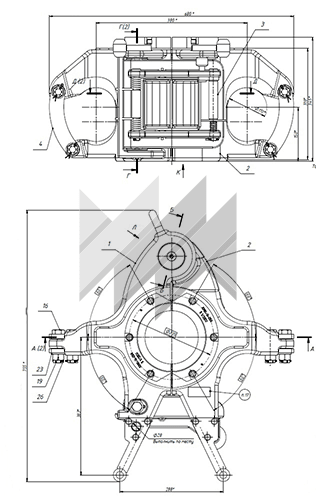

ED-K Taper Elevator (KMK-M, DDZ)
About the product
The ED-K Taper Elevator with a central latch and automatic locking mechanism is designed for gripping tubing couplings or drill pipe tool joints and supporting tubing or drill pipe strings with an 18° taper seat and nominal diameters from 60 to 127 mm during running and pulling operations in oil and gas well drilling
- Diameter
- 60-168
- Load Capacity
- 60-350
Technical specifications
| Elevator Model | Load Capacity, kN (t) | Nominal Pipe Diameter, mm | Overall Dimensions, mm | Complete Assembly Weight, kg |
|---|---|---|---|---|
|
ED-K 60-60 ED-K 73-60 ED-K 89-60 |
600 (60) |
60 73 89 |
450×420×210 | 46 |
|
ED-K 60-80 ED-K 73-80 ED-K 89-80 ED-K 102-80 |
800 (80) |
60 73 89 102 |
490×480×240 | 72 |
|
ED-K 60-100 ED-K 73-100 ED-K 89-100 ED-K 102-100 |
1000 (100) |
60 73 89 102 |
500×500×260 | 88 |
|
ED-K 60-150 ED-K 73-150 ED-K 89-150 ED-K 102-150 ED-K 127-150 |
1500 (150) |
60 73 89 102 127 |
685×265×648 | 157–185 |
|
ED-K 89-200 ED-K 102-200 ED-K 114-200 ED-K 127-200 |
2000 (200) |
89 102 114 127 |
810×522×330 | 252–275 |
|
ED-K 89-250 ED-K 102-250 ED-K 114-250 ED-K 127-250 ED-K 140-250 |
2500 (250) |
89 102 114 127 140 |
810×522×330 | 252–275 |
| ED-K 140-350 | 3500 (350) | 127–168 | 884×501×350 | 360–390 |
Description
The ED-K conical elevator with a central latch and automatic locking mechanism is designed for gripping under the coupling or tool joint and suspending tubing strings or drill pipe strings with an 18° upset taper during tripping operations in oil and gas well drilling. The elevators are intended for pipes with nominal diameters from 60 mm to 127 mm and are designed for operation in temperate and cold climatic regions (Region I2) in accordance with GOST 16350-80. The product is classified as Operating Category I according to GOST 15150-69.
