ED Elevator (DD, TA)

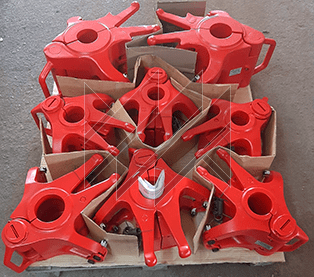

About the product

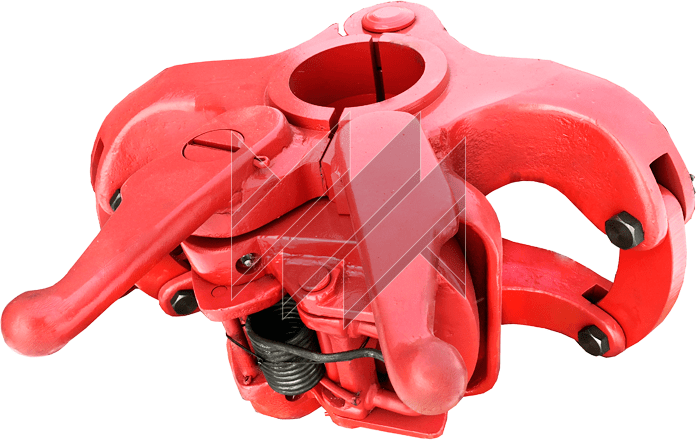

The ED Elevator with a central latch and automatic locking mechanism is designed for gripping tubing couplings or drill pipe tool joints and supporting tubing or drill pipe strings with a 90° straight seat and nominal diameters ranging from 60 to 168 mm during running and pulling operations
- Diameter
- 60-219
- Load Capacity
- 60-350
Technical specifications
| Parameter | ED-60 | ED-80 | ED-100 | ED-150 | ED-250 | ED-350 |
|---|---|---|---|---|---|---|
| Maximum Load Capacity, t | 60 | 80 | 100 | 150 | 250 | 350 |
| Nominal Pipe Diameter, mm | 60–89 | 60–114 | 60–114 | 60–127 | 89–203 | 89–219 |
| Overall Dimensions, mm | ||||||
| (Length × Width × Height) | 450×420×210 | 490×480×240 | 500×500×260 | 685×265×648 | 810×522×330 | 884×501×350 |
| Complete Assembly Weight, kg | 46 | 72 | 88 | 157–185 | 252–275 | 360–390 |

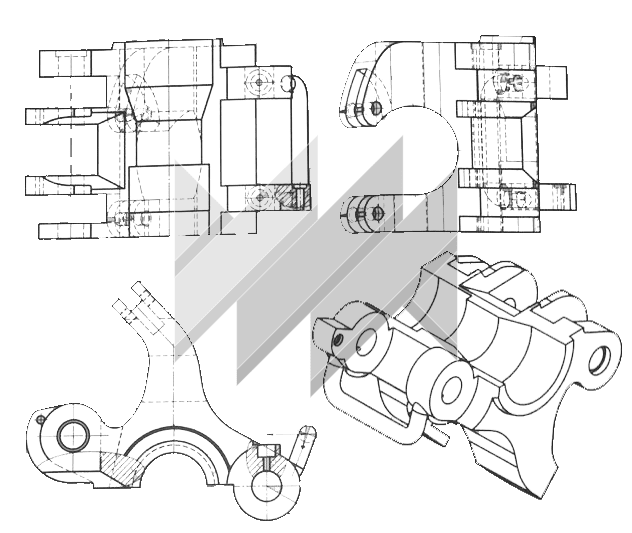

Description
The ED elevators with a central latch and automatic locking mechanism are designed for gripping under the coupling or tool joint and suspending tubing strings or drill pipe strings with a 90° square shoulder during tripping operations in oil and gas well drilling. The elevators are intended for pipes with nominal diameters ranging from 60 mm to 168 mm and are designed for operation in temperate and cold climatic regions (Region I2) in accordance with GOST 16350-80. The product is classified as Operating Category I according to GOST 15150-69.
