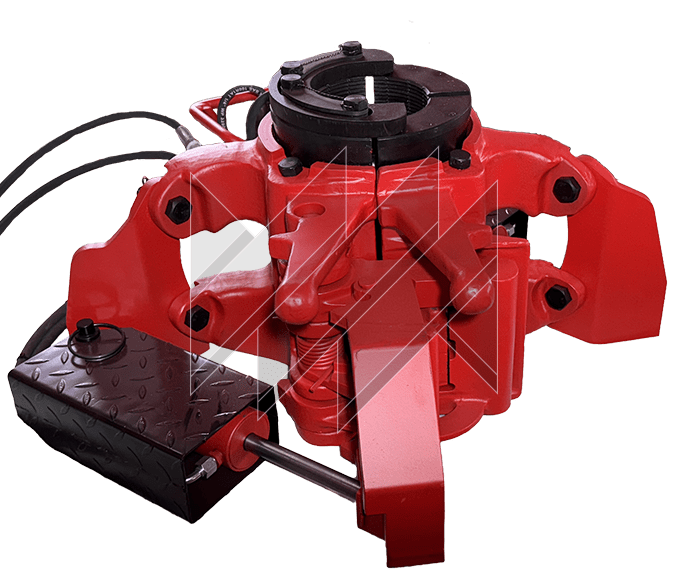

EDP-U Elevator
About the product
The EDP-U Elevator is designed for gripping and lifting drill pipe, casing strings, and tubing. It provides reliable performance during running and pulling operations in oil and gas well drilling and workover applications
- Diameter
- 73-140
- Rated Load
- 75-150
Technical specifications
| Parameter | EDP-U |
|---|---|
| Nominal Pipe Diameter, mm | 73–140 |
| Permissible Load, t | 75–150 |
| Operation | Pneumatic |
| Eyelet Inside Diameter for Sling Attachment, mm | 80 |
| Overall Dimensions, mm | 770×880×390 |
| Weight, kg (max.) | 270 |
Description
The EDP-U elevator is designed for gripping and lifting drill pipes, casing strings, and tubing during tripping operations. It is a reliable tool for handling tubular goods in drilling and well servicing applications.
The EDP-U elevator with a central latch is a combined lifting tool utilizing four slips with interchangeable inserts. This design provides a secure grip on tubing or casing while leaving only minimal marks on the pipe surface. A distinctive feature of this spider elevator is its dual safety locking system, which significantly reduces the possibility of accidental opening during operation.
The EDP-U elevator is manufactured from high-strength alloy steel. Each unit undergoes proof load testing and magnetic particle inspection to ensure structural integrity and operational safety.
The EDP-U elevator fully complies with the requirements of API Spec 8A/8C for drilling and oilfield hoisting equipment.
