KML Clamp Elevator (SJ/SP)

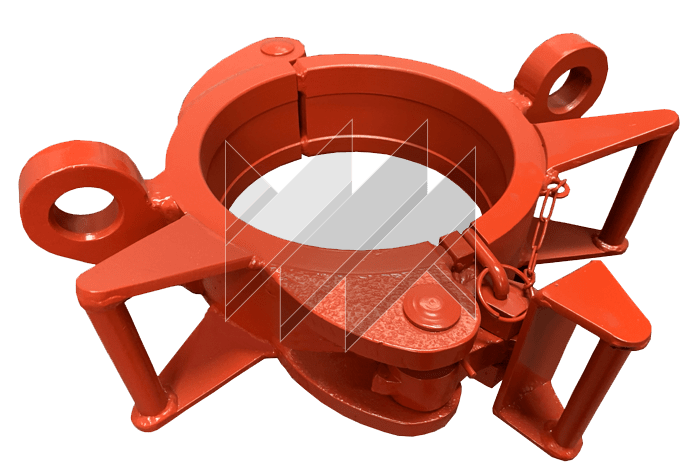

About the product
The KML Clamp Elevator (SJ/SP) is designed to mechanize pipe-handling operations, including lifting individual tubing, drill pipe, or casing, as well as downhole motors or positive displacement motors, from the pipe rack to the rig floor using an auxiliary winch
- Diameter
- 114-630
- Load Capacity
- 5-10

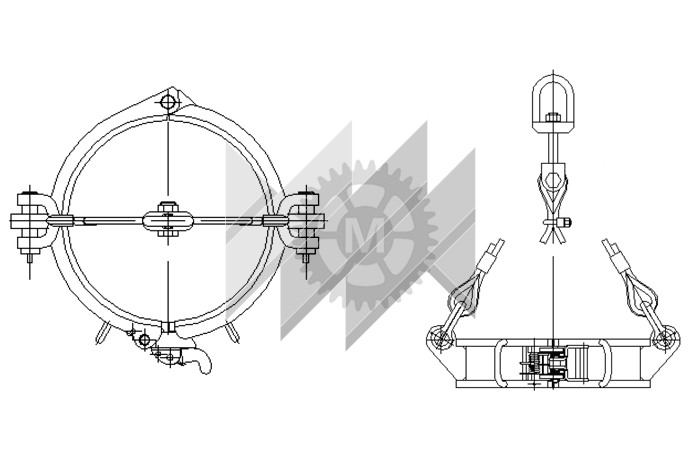

Technical specifications

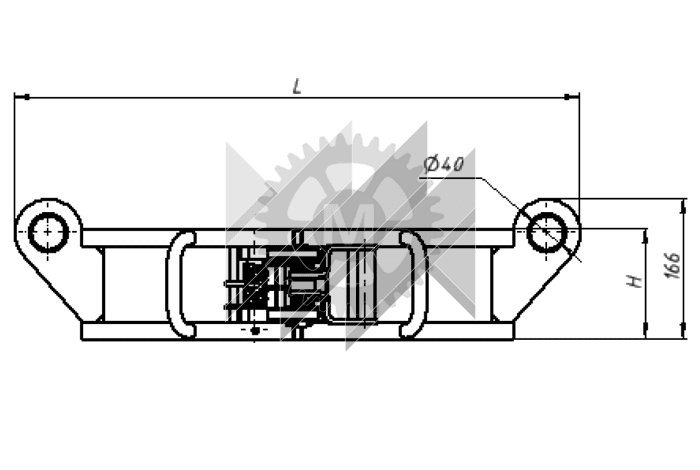

| Designation | Load capacity, kN (t) | Nominal diameter of gripped pipes, mm | Overall dimensions, mm (length-height-width) | Weight, kg |
|---|---|---|---|---|
| KML 114-5 | 5 | 114 | 360×130×350 | 29 |
| KML 127-5 | 5 | 127 | 385×130×360 | 30 |
| KML 140-5 | 5 | 140 | 400×130×375 | 31 |
| KML 146-5 | 5 | 146 | 405×130×380 | 31 |
| KML 168-5 | 5 | 168 | 425×130×400 | 33 |
| KML 178-5 | 5 | 178 | 435×130×410 | 34 |
| KML 194-5 | 5 | 194 | 450×130×420 | 35 |
| KML 219-5 | 5 | 219 | 480×130×440 | 37 |
| KML 245-5 | 5 | 245 | 500×130×460 | 38 |
| KML 324-5 | 5 | 324 | 570×130×530 | 42 |
| KML 340-5 | 5 | 340 | 620×130×580 | 48 |
| KML 426-5 | 5 | 426 | 670×130×616 | 50 |
| KML 530-5 | 5 | 530 | 780×130×720 | 58 |
| KML 630-10 | 10 | 630 | 820×130×760 | 66 |

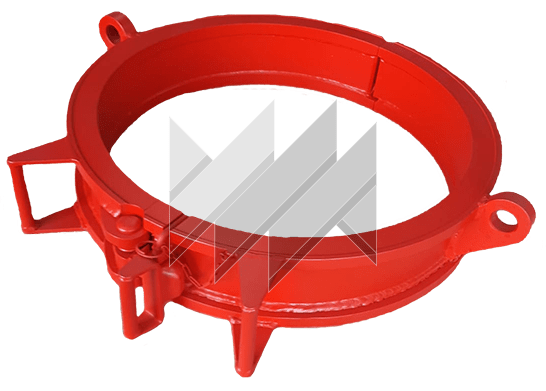

Upon customer request, KML clamp elevators with a diameter of 630 mm and a load capacity of 10 tons can be manufactured.

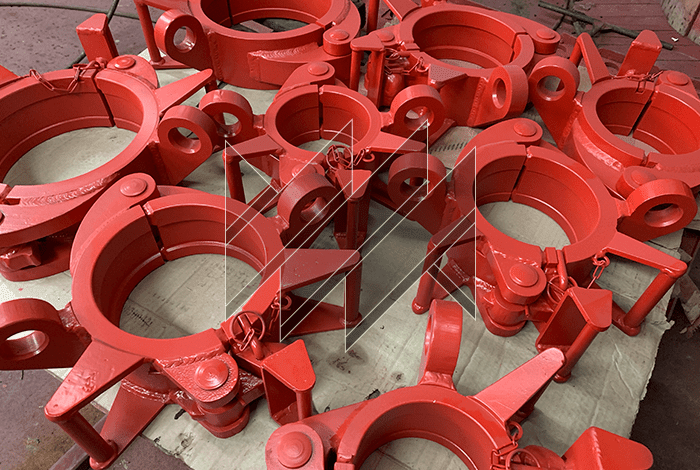

Description
The KML clamp elevator (SJ/SP) is designed for mechanization of loading and unloading operations — lifting individual tubing strings, drill pipes, or casing pipes, as well as downhole or screw motors, from the pipe rack area to the rig floor and working platform using an auxiliary winch.
The elevators are designed for operation in moderate and cold (region I2) climatic areas according to GOST 16350-80, with placement category 1 according to GOST 15150-69.
