Khalatyan Elevator EKhL

About the product

TU 05273837.303838.037

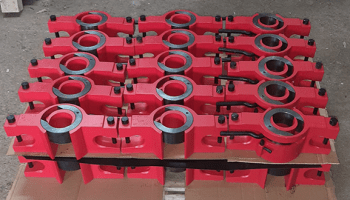

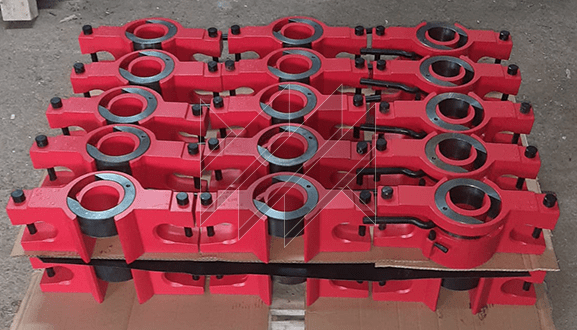

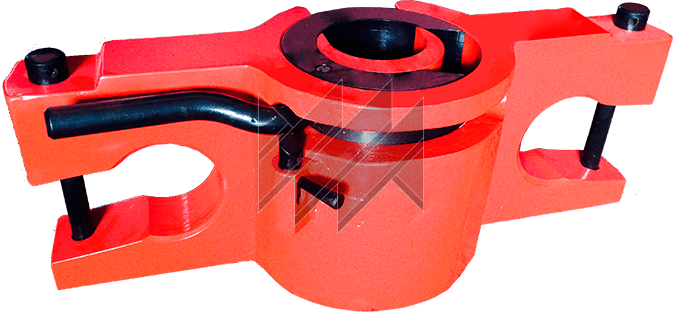

EKhL Khalatyan-Type Double-Bail Elevators are designed for gripping and supporting tubing strings during running and pulling operations performed in routine well servicing and major workover operations on producing oil and gas wells

Diameter: 33-114

Load Capacity: 15-50

All specifications

Technical specifications

Designation	Diameter of suspended pipes, mm	Load capacity, t	Overall dimensions, mm			Weight, kg
Designation	Diameter of suspended pipes, mm	Load capacity, t	Length L	Width B	Height H	Weight, kg
EHL-33-15	33	15	370	140	110	20.3
EHL-37.4-15	37.4					20
EHL-48-15	48					18.6
EHL-60-15	60			145		18
EHL-60VN-15	V-60			145		17.8
EHL-73-25	73	25		149	130	20.6
EHL-73VN-25	V-73	25		149	130	20.4
EHL-73-35	73	35	395	167	145	29
EHL-73VN-35	V-73	35	395	167	145
EHL-89-35	89	35	395	167	145	29
EHL-89VN-35	V-89	35	395	167	145	28.8
EHL-102-35	102	35	440	200	160	37.5
EHL-114-40	114	40	440	200	160	35
EHL-102-40	102	40	440	200	160	37.5
EHL-73VN-40	V-73	25	440	200	160	37
EHL-73-40	73	40	440	200	160	37.5
EHL-89-50	89	50	440	200	160	37.5
EHL-73-50	73	50	440	200	160	37.5

Description

Two-link Khalatyan-type elevators EHL are designed for gripping and suspending tubing strings during tripping operations in the course of current and major repairs of production wells.

Khalatyan EHL elevators are designed for operation in moderate and cold (region I) macroclimatic areas according to GOST 16350, placement category — 1 according to GOST 15150.

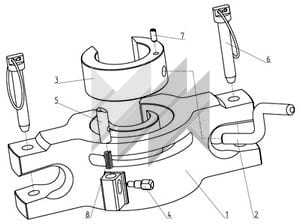

The EHL elevator has the following design: the elevator body has an open throat for inserting and removing the pipe, with a locking device located in an annular eccentric groove and connected to a handle. The elevator is opened and closed by turning the handle, which is held in the closed position by a locking mechanism. The elevator has a fillet on the lock seat, allowing operation with small-diameter drill pipes with drive-type tool joints.
