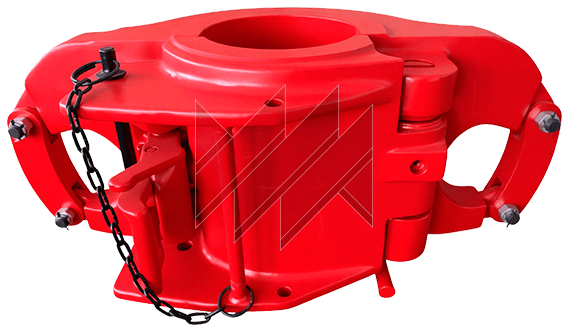

KMO-M Casing Elevator
About the product
Manufactured from alloy steel, these elevators are designed for gripping and supporting casing strings with a straight-seat profile during running and pulling operations in oil and gas well drilling. They are suitable for operation in temperate and cold climatic regions (Climatic Region I2)
- Diameter
- 194-530
- Load Capacity
- 170
Technical specifications
| Elevator designation | Load capacity, kN (tf) | Nominal diameter of handled pipes, mm | Bore diameter | Overall dimensions, mm | Weight, kg | |
|---|---|---|---|---|---|---|
| For pipe Dm/Din, mm | For coupling DM, mm | |||||
| KMO-M 194-170 | 1700(170) | 194 | 198 | 220 | 760×266×402 | 183 |
| KMO-M 219-170 | 219 | 224 | 250 | 165.5 | ||
| KMO-M 245-170 | 245 | 250 | 275 | 790×300×407 | 183 | |
| KMO-M 273-170 | 273 | 278 | 304 | 172.6 | ||
| KMO-M 299-170 | 299 | 304 | 329 | 880×266×478 | 242.6 | |
| KMO-M 324-170 | 324 | 331 | 358 | 215.4 | ||
| KMO-M 340-170 | 340 | 347 | 372 | 930×266×515 | 290.2 | |
| KMO-M 351-170 | 351 | 358 | 383 | 278.4 | ||
| KMO-M 377-170 | 377 | 384 | 409 | 247.9 | ||
| KMO-M 407-170 | 407 | 415 | 440 | 1020×266×559 | 322.5 | |
| KMO-M 426-170 | 426 | 434 | 459 | 297.2 | ||
| KMO-M 508-170 | 508 | 515 | 540 | 1100×266×605 | 400.6 | |
| KMO-M 530-170 | 530 | 537 | 561 | 358.8 | ||
Description
Manufactured from alloy steel and designed for gripping and suspending casing pipe strings with a straight shoulder during tripping operations while drilling oil and gas wells. They are intended for operation in moderate and cold (region I2) macroclimatic areas according to GOST 16350-80, with the product placement category being the first according to GOST 15150-69. The elevators feature advanced weight characteristics, simplicity, and reliability in operation. Load capacity — 170 tons.
