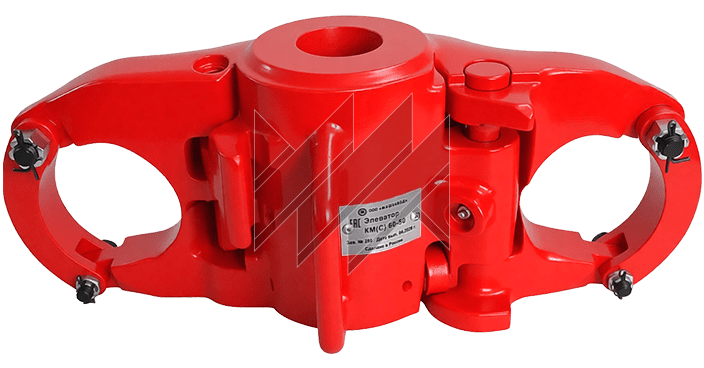

KM(S) Body Elevator
About the product
The KM(S) Body Elevator is designed for gripping tubing couplings and supporting tubing strings manufactured in accordance with GOST 633-80 during running and pulling operations in oilfield well workover applications
- Diameter
- 60-73
- Load Capacity
- 50
Technical specifications
| Elevator code | Load capacity, kN (tf) | Nominal pipe diameter, mm | Bore diameter, mm | Overall dimensions, mm length-width-height | Weight, kg |
|---|---|---|---|---|---|
| KM(S) 60-50 | 500(50) | 60 | 63 | 540×215×275 | 40 |
| KM(S) 60N-50 | 500(50) | 60 | 63/71 | 540×215×275 | 39 |
| KM(S) 60PN-50 | 500(50) | 60 | 63/78 | 540×215×275 | 38 |
| KM(S) 73-50 | 500(50) | 73 | 76 | 540×215×275 | 37 |
| KM(S) 73N/NP-50 | 500(50) | 73 | 76/86 | 540×215×275 | 36 |
| KM(S) 73PV-50 | 500(50) | 73 | 76/79 | 540×215×275 | 37 |
| KM(S) 73PK-50 | 500(50) | 73 | 77/79.8 | 540×215×275 | 37 |
| KM(S) 73PN-50 | 500(50) | 73 | 76/85 | 540×215×275 | 36 |
* Available with spring safety device.
Description
Applied in moderate and cold climatic regions according to GOST 16350-70. Placement category I according to GOST 15150-69.
The elevator design ensures automatic locking of the latch when the pipe is inserted into the elevator opening. The latch locking device, which closes the sling eyes of the clamp brackets, prevents their accidental opening. For convenient handling of the elevator during operation, handles are installed on the elevator body and latch.
Similar to the SD-65 "Oil Country" elevator models.
