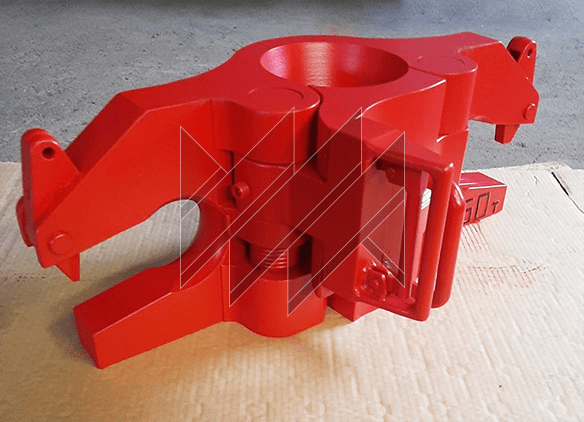

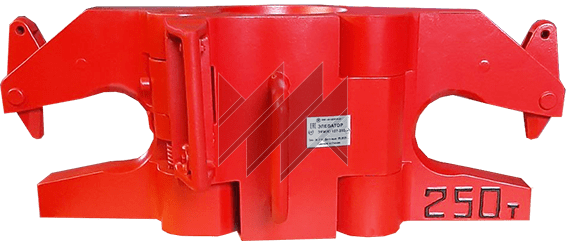

K EKM(K) Body Elevator

About the product

TU 05273837.303838.028

The EKM(K) Elevator is designed for gripping drill pipe couplings or tool joints with an 18° taper seat and supporting drill pipe strings during running and pulling operations in oil and gas well drilling, completion, and workover applications

Diameter: 85-220

Load Capacity: 250

All specifications

Technical specifications

Elevator designation	Load capacity, kN (tf)	Nominal pipe diameter, mm	Bore diameter, mm	Overall dimensions, mm length-width-height	Weight, kg
EKM(K) 73-150	150	85.7-111.1	79-114	614х444х260	110.3
EKM(K) 89-150	150	104.8-127	96-130	614х444х260	95-101
EKM(K) 89-250	250	96.4-133.4	118-138	810х522х330	275
EKM(K) 102-250	250	104.8-152.4	118-158	810х522х330	271
EKM(K) 114-250	250	117-168	122-174	810х522х330	270
EKM(K) 127-250	250	130-184	147-196	810х522х330	261
EKM(K) 140-250	250	142-190	159-193	810х522х330	246
EKM(K) 152-250	250	155-187	159-193	810х522х330	248
EKM(K) 102-350	350	104-152	118-158	884х501х350	427
EKM(K) 114-350	350	117.5-168	122-174	884х501х350	419
EKM(K) 127-350	350	130-184	134-190	884х501х350	415
EKM(K) 140-350	350	142-187	147-196	884х501х350	403
EKM(K) 152-350	350	153-187	159-193	884х501х350	400
EKM(K) 168-350	350	168-220	178-226	884х501х350	381
