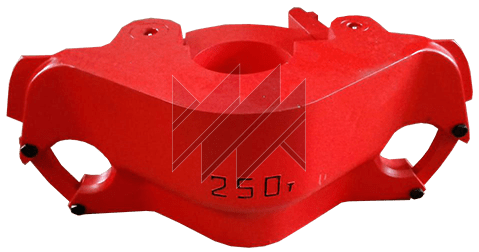

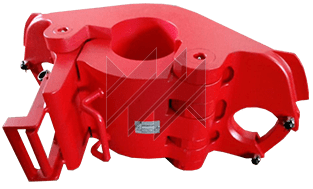

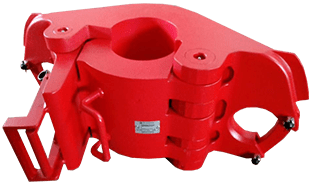

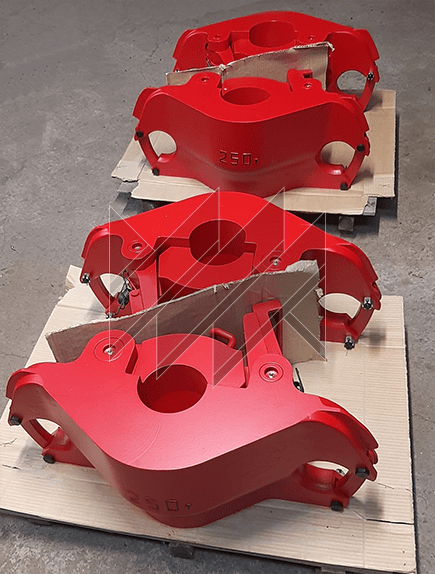

KMK Taper Elevator

About the product

TU 05273837.303838.028

The KMK Taper Elevator is designed for gripping and supporting drill pipe or casing strings with an 18° taper seat and pipe diameters ranging from 60 to 377 mm during running and pulling operations in oil and gas well drilling. It is intended for use in temperate and cold climatic regions (Climatic Regions I1 and I2) in accordance with GOST 16350

Diameter: 60-324

Load Capacity: 125-350

All specifications

Technical specifications

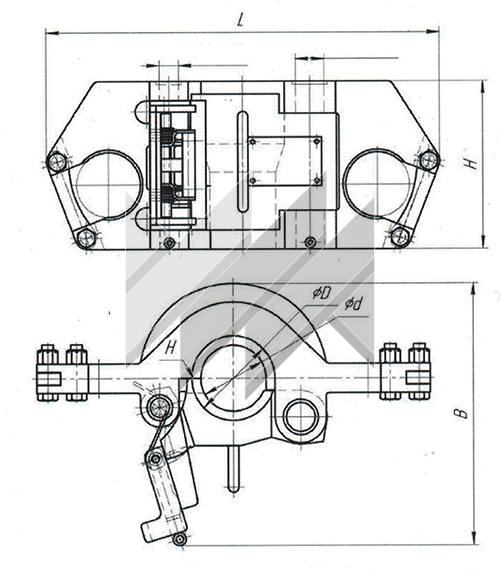

Elevator designation	Load capacity, kN (tf)	Nominal diameter of gripped pipes, mm	Bore diameter, mm	Overall dimensions, mm (length-width-height)	Weight, kg
KMK 73-150	150	85.7-111.1	79-114	614×444×260	110.3
KMK 89-150	150	104.8-127	96-130	614×444×260	95-101
KMK 89-250	250	96.4-133.4	118-138	810×522×330	275
KMK 102-250	250	104.8-152.4	118-158	810×522×330	271
KMK 114-250	250	117-168	122-174	810×522×330	270
KMK 127-250	250	130-184	147-196	810×522×330	261
KMK 140-250	250	142-190	159-193	810×522×330	246
KMK 152-250	250	155-187	159-193	810×522×330	-
KMK 102-350	350	104-152	118-158	884×501×350	427
KMK 114-350	350	117.5-168	122-174	884×501×350	419
KMK 127-350	350	130-184	134-190	884×501×350	415
KMK 140-350	350	142-187	147-196	884×501×350	403
KMK 152-350	350	153-187	159-193	884×501×350	400
KMK 168-350	350	168-220	178-226	884×501×350	381
