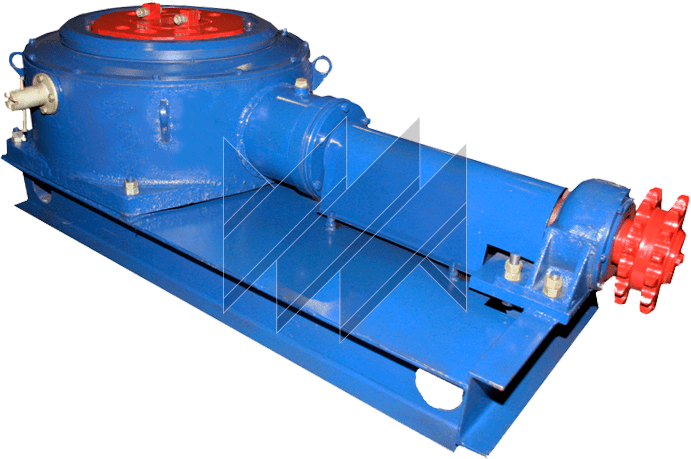

RU-80x400 Chain-Driven Rotary Table

About the product

TU 05273837.303838.027
The RU-80×400 Chain Drilling Rotary Table is designed for rotating the drilling assembly during drilling, workover, and well completion operations for water, oil, and gas wells, as well as for supporting drill pipe, tubing, and casing strings suspended on an elevator or spider
Through Hole, mm
400
Load Capacity, tf
80
Torque, kgf·m
1200

Technical specifications

Parameter Value
Permissible static load on the rotary table, kN (tf) 800 (80)
Maximum torque, N·m (kgf·m) 12000 (1200)
Maximum rotary drive power, kW 100
Rotary table speed, s⁻¹ (rpm), max. 3.33 (200)
Drive type Mechanical, via chain drive
Rotary table bore diameter, mm, min. 400
 — length 1830
 — width 800
 — height 610
Weight, kg, max. 980

Compatible with KGOM No. 3 master bushing upon request.

Available upon request:
- Gear wheel RU03.001 / Pinion RU01.002

Description

The RU 80×400 chain-driven drilling rotary table is designed for rotating the drill string during drilling, workover, and completion of water, oil, and gas wells, as well as for supporting drill pipe, tubing, and casing strings suspended in an elevator or spider.

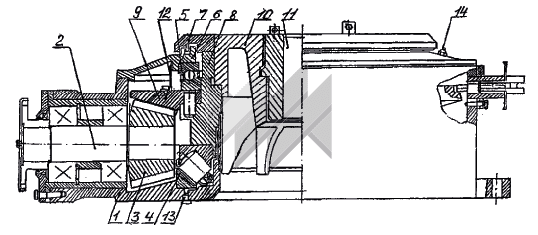

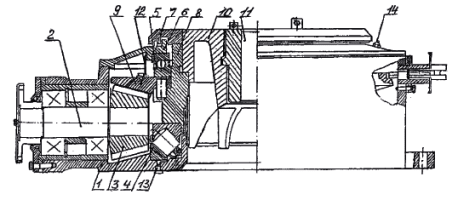

The RU 80×400 rotary table is mounted on a welded channel-frame base. Rotation is transmitted to the rotary table through a chain drive, the drive shaft, and a bevel gear transmission.

The rotary housing is the main structural component to which all other rotary parts are mounted. It absorbs and transfers all loads generated during drilling and tripping operations to the frame. The hollow interior of the housing serves as an oil bath for the main lower rotary table bearing, the bevel gear set, and the two support bearings of the drive shaft.

The third outboard support of the drive shaft consists of a housing mounted directly to the rig frame and fitted with a bearing lubricated with grease through a grease fitting. The upper auxiliary support bearing of the rotary table, located in the housing cover, is lubricated in the same manner. The upper part of the housing cover features two ribs that form a labyrinth seal with the corresponding ribs on the rotary table cover, protecting the upper bearing. On the inside, the auxiliary bearing cavity is enclosed by a special retaining ring mounted on the upper part of the bevel gear. The rotary table and the central section of the housing also form a labyrinth seal that prevents oil leakage from the oil bath. A drain plug is provided at the bottom of the housing for used oil removal. A dedicated filling and inspection port is provided for adding oil and checking the oil level.

A spiral bevel gear is secured to the rotary table body with four locating pins. The mating bevel pinion is spline-mounted on the drive shaft using 8×62×72×12 splines. A chain drive sprocket (z = 16, pitch t = 44.45 mm) is mounted on the opposite end of the drive shaft using the same spline connection.

Between the rotary housing and the outboard support, the drive shaft is protected by a guard. Large and small cast inserts are installed inside the rotary housing. The large inserts must be installed according to their identification marks: insert No. 2 is installed first, followed by insert No. 1. Removal is performed in the reverse order.

The rotary table is mounted on a welded frame made of No. 16 channel sections. A version with a cardan shaft drive is also available, in which the rotary table is mounted on a special flange instead of the welded frame.
