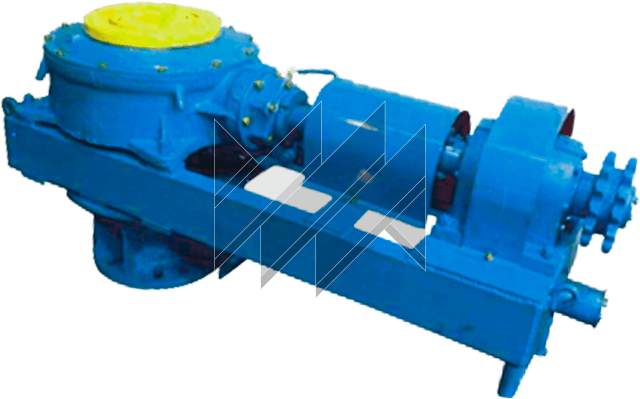

R-250 (A60/80.14.00.000sb) Chain-Driven Rotary Table
About the product
The R-250 Drilling Rotary Table (A60/80.14.00.000sb) is designed for rotating the drilling assembly and supporting the weight of the pipe string during well workover operations on A50M-type units, driven by a chain drive and supplied complete with a chain reducer
- Through Hole, mm
- 250
- Load Capacity, tf
- 60
- Torque, kgf·m
- 1600
Technical specifications
| Parameter | A60/80.14.00.000 Assy | A60/80.14.00.000 Assy-01 |
|---|---|---|
| Maximum static load on the rotor table, tf | 60 | 60 |
| Rotor table bore diameter, mm | 250 | 250 |
| Rotor weight, kg | 915 | 1250 |
Compatible with KGOM No. 3 insert upon request.
Description
The R-250 drilling rotary table (A60/80.14.00.000 Assy) is designed for rotating drilling tools and supporting the drill string during major well workover operations on A50M-type servicing units. It is chain-driven and supplied complete with a chain gearbox. The center distance between the gearbox input and output flanges is 880 mm.
The R-250 drilling rotary table (A60/80.14.00.000 Assy-01) is designed for rotating drilling tools and supporting the drill string during major well workover operations on A50M-type servicing units using a chain drive.
