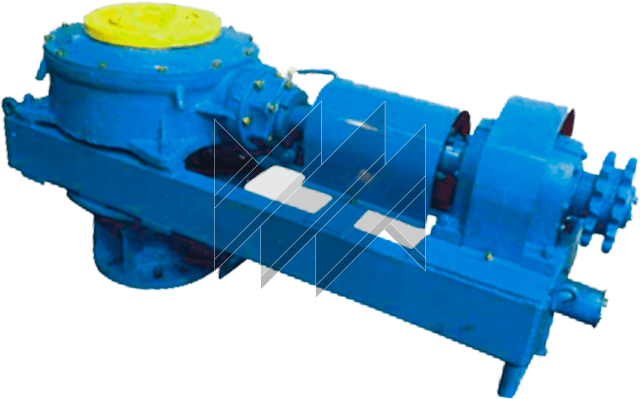

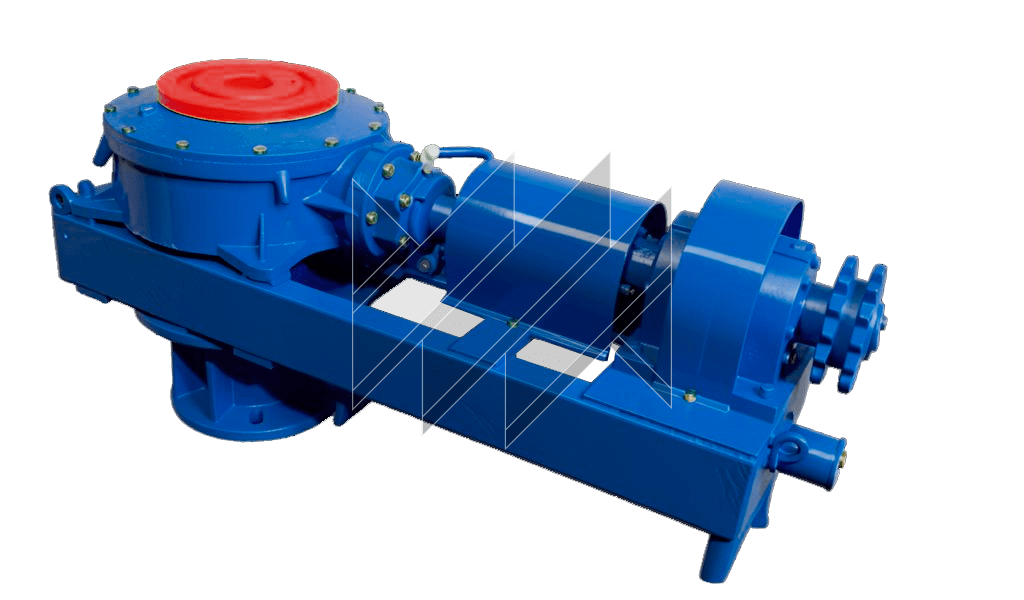

R-410 (A60/80.14.00.000sb-02) Chain-Driven Rotary Table
About the product
The R-410 Drilling Rotary Table (A60/80.14.00.000sb-02) is designed for rotating the drilling assembly and supporting the weight of the pipe string during well workover operations on A50M-type units, driven by a chain drive and supplied complete with a chain reducer
- Through Hole, mm
- 410
- Load Capacity, tf
- 80
- Torque, kgf·m
- 1600
Technical specifications
| Parameter | A60/80.14.00.000 Assy-02 | A60/80.14.00.000 Assy-03 |
|---|---|---|
| Maximum static load on the rotor table, tf | 80 | 80 |
| Rotor table bore diameter, mm | 410 | 410 |
| Rotor weight, kg | 1415 | 1250 |
Compatible with KGOM No. 3 insert upon request.
Description
The R-410 drilling rotary table (A60/80.14.00.000 Assy-02) is designed for rotating drilling tools and supporting the drill string during major well workover operations on A50M-type servicing units. It is chain-driven and supplied complete with a chain gearbox. The center distance between the gearbox input and output flanges is 880 mm.
The R-410 drilling rotary table (A60/80.14.00.000 Assy-03) is designed for rotating drilling tools and supporting the drill string during major well workover operations on A50M-type servicing units using a chain drive.
