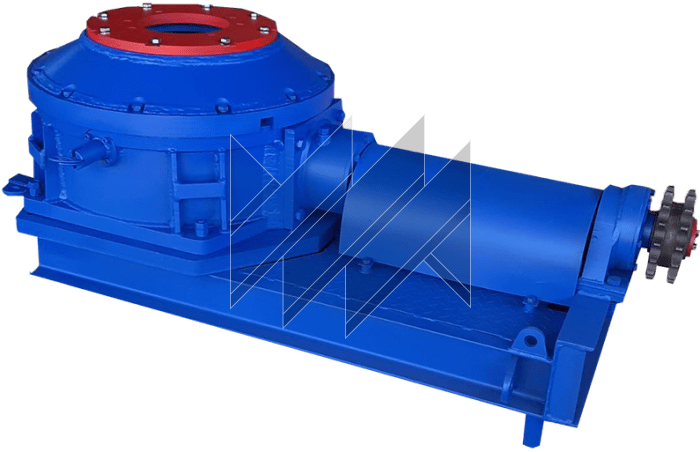

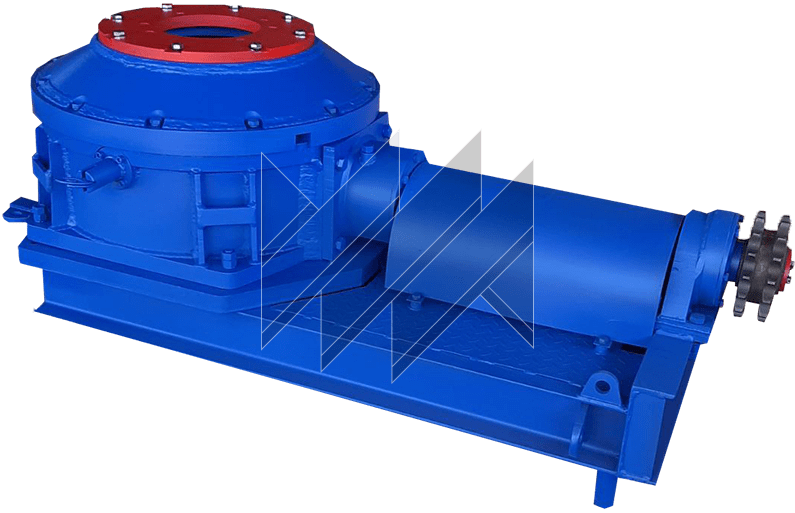

R-360-120 Chain-Driven Rotary Table
About the product
The R-360-120 Chain Rotary Table is designed for rotating drill pipes and supporting drill pipe or casing strings during make-up and break-out operations in running and pulling operations during exploration drilling and well workover activities
- Through Hole, mm
- 360
- Load Capacity, tf
- 120
- Torque, kgf·m
- 1230
Technical specifications
| Parameter | Value |
|---|---|
| Rotor table bore diameter, mm | 360 |
| Drive type | Chain drive |
| Permissible static load on the rotor table, MN (tf) | 1.2 (120) |
| Maximum torque on the rotor table | |
| — clockwise rotation | 1230 |
| — counterclockwise rotation, kgf·m | — |
| Distance from the center of the rotor table to the sprocket tooth axis (chain drive), mm | 878 |
| Rotor table speed, s⁻¹ (rpm) | |
| — clockwise | 3.33 (200) |
| — counterclockwise, s⁻¹ (rpm) | — |
| Kelly bushing options | Kelly 80×80, Kelly 89×89, Kelly 112×112 |
| Gear ratio from the drive shaft to the rotor table, i | 3.29 |
| Overall dimensions, mm | |
| — length | 1385 |
| — width | 925 |
| — height | 510 |
| Weight, kg | 1370 |
Compatible with KGOM No. 3 insert upon request.
Description
The R-360 chain-driven rotary table is designed for rotating drill pipes and supporting drill pipe or casing strings during make-up and break-out operations performed as part of tripping operations in exploratory drilling and major well workover applications. It is intended for operation in temperate and cold climatic regions (Region I2) in accordance with GOST 16350-80 and is classified as Installation Category 1 under GOST 15150-69. Rotation is transmitted to the rotor table through a chain drive and bevel gear transmission.
