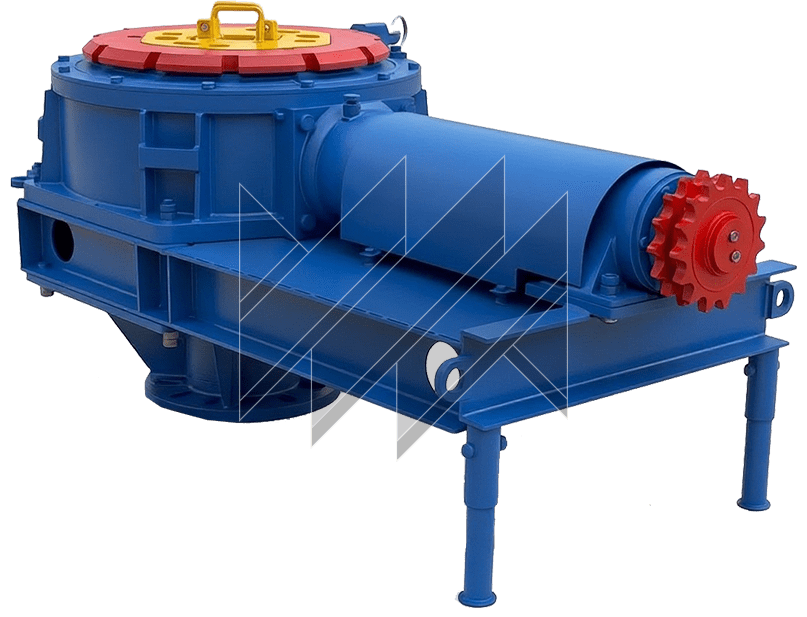

RU 80-400-01FN Chain-Driven Rotary Table with Flanged Mount and External Lock
About the product
The RU 80-400-01FN chain-driven rotary table with flanged mount and external lock is designed to rotate drilling tools during drilling, workover and completion operations on water, oil and gas wells. It is also designed to support drill pipe, tubing and casing strings suspended from an elevator or spider
- Table Opening Diameter, mm
- 400
- Load Capacity, tf
- 80
- Torque, kgf·m
- 1200
Technical specifications
| Parameter | Value |
|---|---|
| Permissible Static Load on Rotary Table, kN (tf) | 800 (80) |
| Maximum Torque, N·m (kgf·m) | 12,000 (1,200) |
| Maximum Rotary Table Drive Power, kW | 100 |
| Rotary Table Speed, s-1 (rpm), max. | 3.33 (200) |
| Drive Type | Mechanical, via chain drive |
| Rotary Table Opening Diameter, mm, min. | 400 |
| Overall Dimensions — Length, mm | 1830 |
| Overall Dimensions — Width, mm | 800 |
| Overall Dimensions — Height, mm | 610 |
| Weight, kg, max. | 980 |
The rotary table can be manufactured for use with KGOМ No. 3 insert.
The following components can be manufactured upon request:
- RU03.001 Gear Wheel
- RU01.002 Pinion
