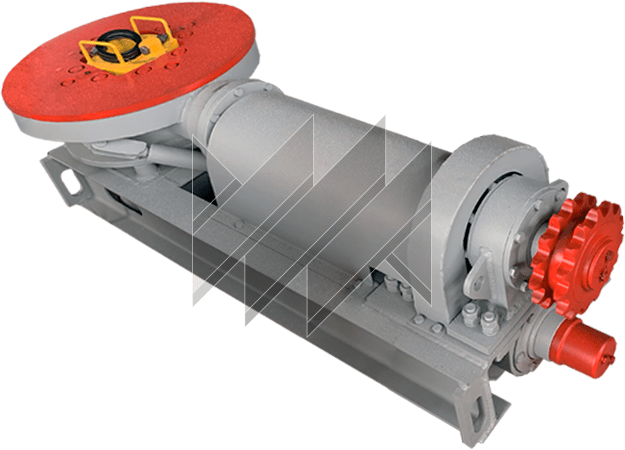

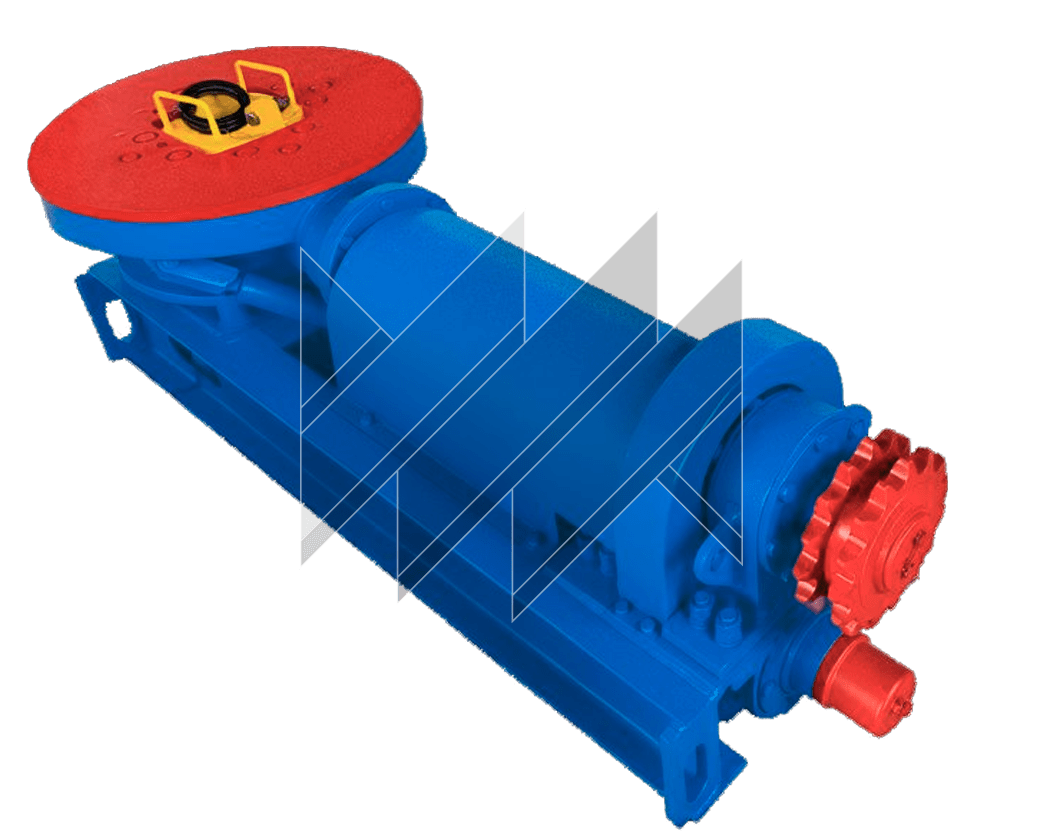

RM-200R Reversible Chain-Driven Rotary Table
About the product
The RM-200R Reversible Drilling Rotary Table is designed for rotating the tool and supporting drill pipe, tubing, and casing strings during running and pulling operations carried out during well workover activities
- Through Hole, mm
- 200
- Load Capacity, tf
- 60
- Torque, kgf·m
- 2000
Technical specifications
| Parameter | Value |
|---|---|
| Rotor table bore diameter, mm, min. | 200 |
| Load capacity, t, max. | 60 |
| Torque on the rotor table, Nm (kgf·m), max. | 20000 (2000) |
| Maximum rotor table speed, s⁻¹ (rpm), max. | 5 (300) |
| Gear ratio: | 4.36 |
| Sprocket tooth count | 14 |
| Drive chain | 2PR-44.45-344 |
| Rotor table operating rotation direction | Reversible by repositioning the drive shaft sprocket |
| Overall dimensions, mm, max. | |
| — length | 1760 |
| — width | 640 |
| — height | 522 |
| Weight, kg, max. | 680 |
Compatible with KGOM No. 3 insert upon request.
Description
The RM-200R reversible drilling rotary table is designed for rotating drilling tools and supporting strings of drill pipe, tubing, and casing during tripping operations performed in well servicing and workover applications.
The rotary table is intended for operation in temperate and cold climatic regions at ambient temperatures ranging from -40°C to +40°C.
