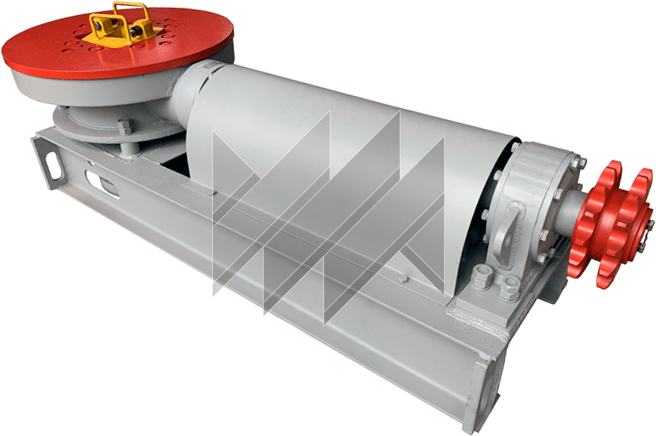

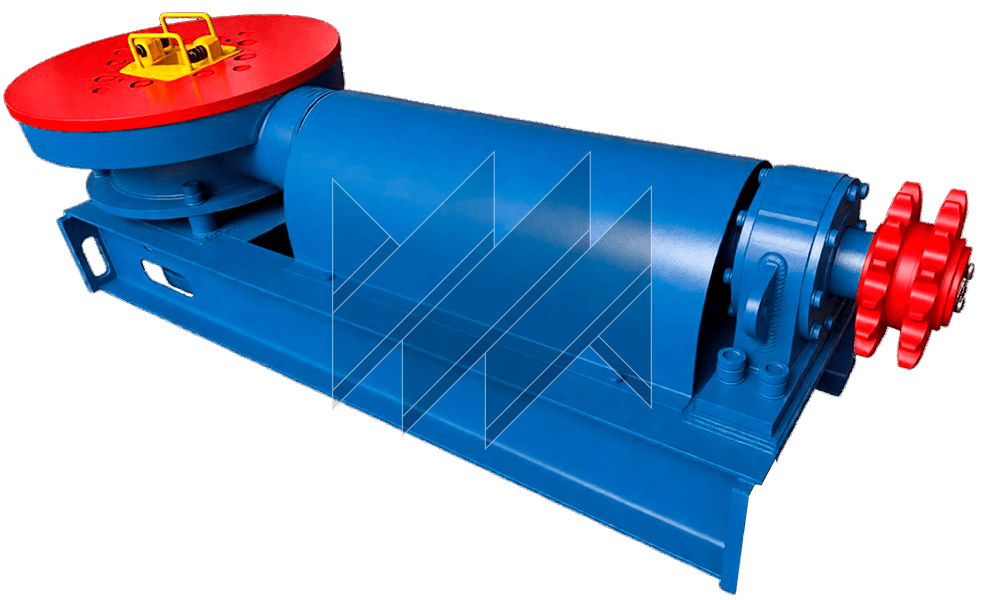

RM-200 Chain-Driven Rotary Table
About the product
The RM-200 Chain Rotary Table is designed for rotating the drill bit and supporting the drill string during well repair operations. The RM-200 Mechanical Rotary Table is driven by an A-50 unit through a chain drive
- Through Hole, mm
- 205
- Load Capacity, tf
- 50
- Torque, kgf·m
- 2000
Technical specifications
| Parameter | Value |
|---|---|
| Rotor table bore diameter, mm | 205 |
| Load capacity, t | 50 |
| Maximum torque on the rotor table, Nm | 20000 |
| Maximum rotor table speed, s⁻¹ (rpm) | 5 (300) |
| Distance from the rotor axis to the axis of the first row of sprocket teeth, mm | 1353 |
| Chain drive from the unit | A-50M and others |
| Overall dimensions, mm | |
| — length | 1760 |
| — width | 640 |
| — height | 522 |
Compatible with KGOM No. 3 insert upon request.
Description
The RM-200 chain-driven rotary table is designed to rotate the drill bit and support the drill string during well workover operations. The mechanical RM-200 rotary table is driven by the A-50 servicing unit through a chain drive. In accordance with GOST 16350-80, the RM-200 is intended for operation in climatic regions corresponding to categories I2–II2. The rotary table is installed in accordance with Category I of GOST 15150-69.
