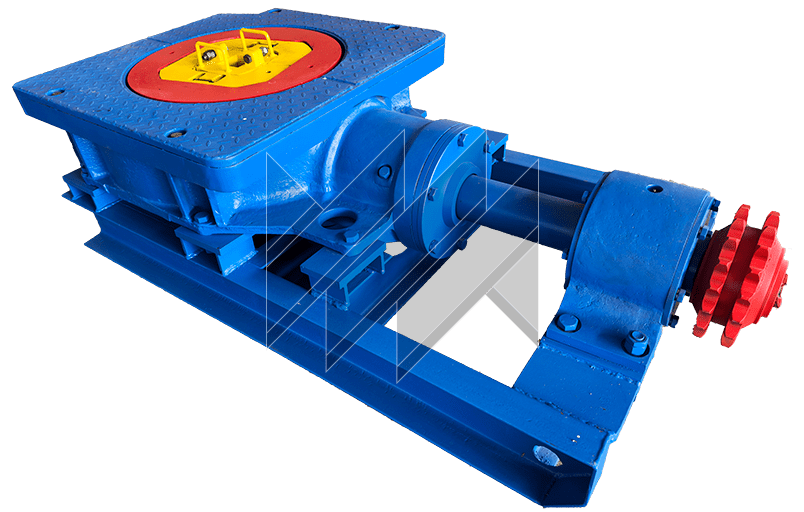

R-360-140 Chain-Driven Rotary Table
About the product
The R-360-140 Chain Rotary Table is designed for rotating the drilling assembly and supporting drill pipe or casing strings during make-up and break-out operations in running and pulling operations during small-diameter exploration drilling and well workover operations in moderate and cold climatic regions
- Through Hole, mm
- 360
- Load Capacity, tf
- 140
- Torque, kgf·m
- 1230
Technical specifications
| Parameter | Value |
|---|---|
| Rotary table bore diameter, mm | 360 |
| Permissible static load on the rotary table, MN (tf) | 1.2 (120) |
| Maximum torque on the rotary table, kgf·m | 1230 |
| Distance from the center of the rotary table to the sprocket gear axis, mm | 1370 |
| Rotary table speed, rps (rpm) | 3.33 (200) |
| Upper support of the rotary table | Thrust radial bearing No. 9168288 |
| Lower support of the rotary table | Thrust radial bearing No. 7168284 |
| Overall dimensions, mm, max. | |
| — length | 1840 |
| — width | 925 |
| — height | 625 |
|
Rotary table weight, kg — with frame |
1960 |
Note: Upon customer request, the R360 rotary table can be supplied with a frame.
