Spider SPG-80
About the product

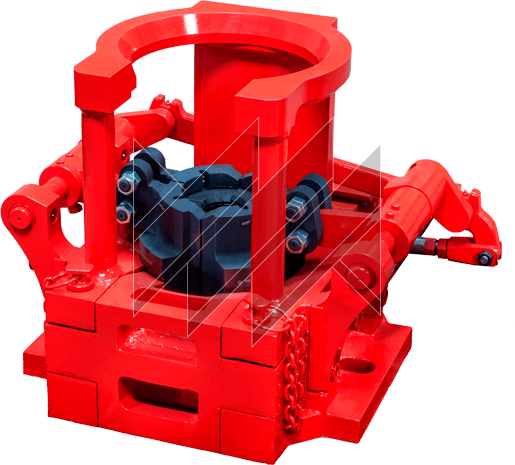

The SPG-80 Spider is designed for gripping tubing and drill pipes with outer diameters of 48 mm (1.99"), 60 mm (2 3/8"), 73 mm (2 7/8"), 89 mm (3 1/2"), 102 mm, and 114 mm (4 1/2"), and for suspending them at the wellhead of oil wells
- Diameter
- 48-114
- Load
- 80
Technical specifications
| Parameter | Value |
|---|---|
| Rated Load Capacity, kN (t) | 800 (80) |
| Pipe Diameters, mm | 48, 60, 73, 89, 102, 114 |
| Slip Actuation | Hydraulic or pneumatic |
|
Operating Pressure, MPa from hydraulic system from pneumatic system |
3–5 0.6–0.9 |
|
Ambient Temperature, °C operating maximum operating |
–40 … +40 –50 … +45 |
| Overall Dimensions, mm | 590×630×450 |
| Weight, kg | 160 max |
Description
The SPG-80 spider is designed for gripping tubing (NKT) and drill pipes with outside diameters of Ø50 mm (1.99"), Ø60 mm (2⅜"), Ø73 mm (2⅞"), Ø89 mm (3½"), and Ø114 mm (4½"), and for supporting them at the wellhead during tripping operations in well servicing and drilling. Climatic version "U", placement category in accordance with GOST 15150-69.
Main Components
- Body with slip assembly and inserts for Ø73 mm (2⅞") tubing (NKT);
- Door;
- Hydraulic or pneumatic cylinder;
- Lever system with latch.
Optional Components and Accessories
- High-pressure hoses RVD6.110.4000.0,07.11/11.M22×1.5/M22×1.5-U1;
- Set of interchangeable jaws with dies for Ø60 mm (2⅜") and Ø89 mm (3½") tubing (NKT);
- Pneumatic control valve;
- Spare parts kit.
Inserts for additional tubing (NKT) sizes are available upon the Customer's request.
