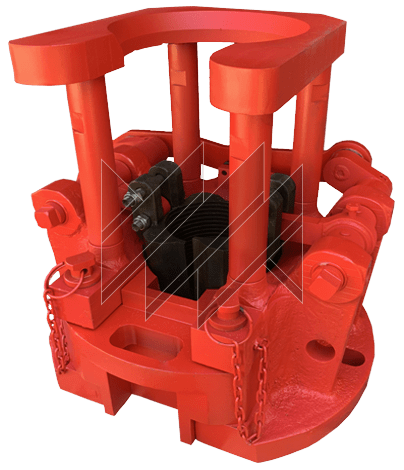

Spider SPG-125
About the product
The SPG-125 Spider is designed for gripping tubing and drill pipes with outer diameters of 48 mm (1.99"), 60 mm (2 3/8"), 73 mm (2 7/8"), 89 mm (3 1/2"), 102 mm (4"), 114 mm (4 1/2"), 121 mm, 127 mm, 140 mm, and 146 mm, and for suspending them at the wellhead during running and pulling operations in oil well drilling and workover applications
- Diameter
- 48-146
- Load
- 125
Technical specifications
| Parameter | Value |
|---|---|
| Rated load capacity, kN (t) | 1225 (125) |
| Pipe diameters, mm | 48,60,73,89,102,114,121,127,140,146 |
| Slip drive | Hydraulic or pneumatic |
|
Operating pressure, MPa Hydraulic system Pneumatic system |
3–5 0.6–0.9 |
|
Ambient temperature, °C Operating Maximum operating |
–40 … +40 –50 … +45 |
| Overall dimensions, mm | 585×630×445 |
| Weight, kg | 210 max |
Description
The SPG-125 spider is designed for gripping tubing and drill pipes with outside diameters of Ø50 mm (1.99"), Ø60 mm (2.3/8"), Ø73 mm (2.7/8"), Ø89 mm (3½"), Ø102 mm (4"), and Ø114 mm (4½"), and for supporting them at the wellhead during tripping operations in well servicing and drilling. Climate version "U", installation category according to GOST 15150-69.
Warranty period: 12 months.
Main components
- Body with slip assembly and inserts for Ø73 mm (2.7/8") tubing;
- Door;
- Hydraulic or pneumatic cylinder;
- Lever system with latch.
Optional components and accessories
- DN6 high-pressure hoses RVD6.22×1.5;
- Set of inserts for Ø60 mm (2.3/8") and Ø89 mm (3½") tubing;
- Pneumatic valve;
- Spare parts kit.
Upon the Buyer's request, inserts for additional tubing sizes can also be supplied.
