Spider SPG-50
About the product

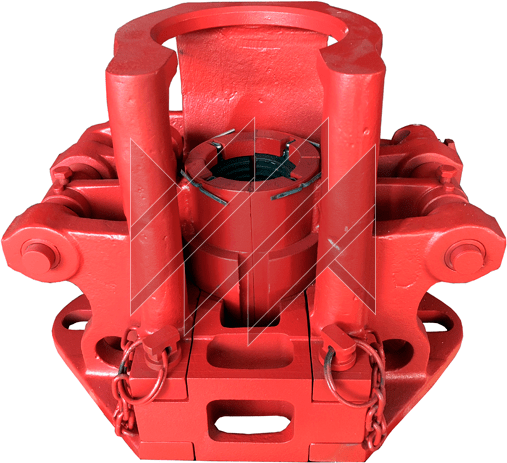

The SPG-50 Spider is designed for gripping tubing and drill pipes with outer diameters of 48 mm (1.99"), 60 mm (2 3/8"), 73 mm (2 7/8"), and 89 mm (3 1/2"), and for suspending them at the wellhead during running and pulling operations in oil well drilling and workover applications
- Diameter
- 48-89
- Load
- 50
Technical specifications
| Parameter | Value |
|---|---|
| Rated load capacity, kN (t) | 500 (50) |
| Pipe diameters, mm | 48,60,73,89 |
| Slip drive | Hydraulic or pneumatic |
| Operating pressure, MPa | |
| Hydraulic system | 3-5 |
| Pneumatic system | 0.6-0.9 |
| Ambient temperature, °C | |
| Operating | –40 … +40 |
| Maximum operating | –50 … +45 |
| Overall dimensions, mm | 565×480×360 |
| Weight, kg | 120 max |
Description
The SPG-50 spider is designed for gripping tubing and drill pipes with outside diameters of Ø48 mm (1.99"), Ø60 mm (2.3/8"), Ø73 mm (2.7/8"), and Ø89 mm (3½"), and for supporting them at the wellhead during tripping operations in well servicing and drilling. Climate version "U", installation category according to GOST 15150-69.
Main components
- Body with slip assembly and inserts for Ø73 mm (2.7/8") tubing;
- Door;
- Hydraulic or pneumatic cylinder;
- Lever system with latch.
Optional components and accessories
- DN6 hose RVD 6.22×1.5;
- Set of inserts for Ø60 mm (2.3/8") and Ø89 mm (3½") tubing;
- Pneumatic valve;
- Spare parts kit.
Upon the Buyer's request, inserts for Ø50 mm (1.99") tubing can also be supplied.
