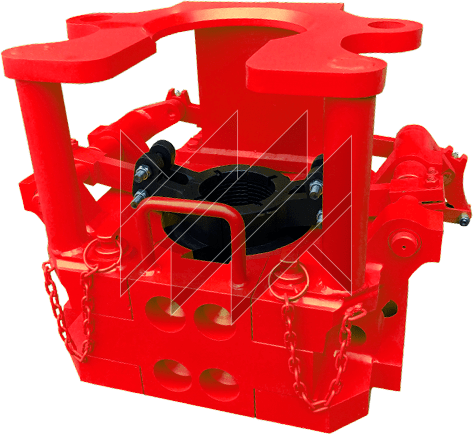

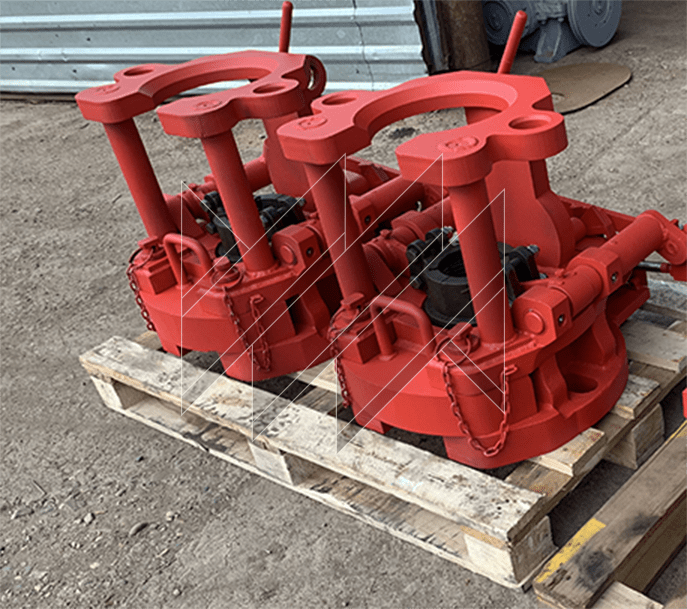

Spider SPG-160
About the product
The SPG-160 Spider is designed for gripping tubing (tubing strings) and drill pipes with outer diameters ranging from 60 mm (2 3/8") to 178 mm (7"), and for suspending them at the wellhead during running and pulling operations in oil well drilling and workover applications
- Diameter
- 60-178
- Load
- 160
Technical specifications
| Parameter | Value |
|---|---|
| Rated load capacity, kN (t) | 1,600 (160) |
| Pipe diameters, mm | 60,73,89,102,114,121,127,140,146,168,178 |
| Slip drive | Hydraulic or pneumatic |
| Operating pressure, MPa | |
| Hydraulic system | 3–5 |
| Pneumatic system | 0.6–0.9 |
| Ambient temperature, °C | |
| Operating | –40 … +40 |
| Maximum operating | –50 … +45 |
| Overall dimensions, mm | 745×720×575 |
| Weight, kg | 456 |
Description
The SPG-160 spider is designed for gripping tubing (production tubing) and drill pipes with outside diameters ranging from Ø60 mm (2 3/8") to Ø178 mm (7"), and for supporting them at the wellhead during tripping operations in well servicing and drilling.
Warranty period: 12 months.
Main components
- Body with slip assembly and inserts for Ø73 mm (2.7/8") tubing;
- Door;
- Hydraulic or pneumatic cylinder;
- Lever system with latch.
Optional components and accessories
- DN6 high-pressure hoses RVD6.22×1.5;
- Set of inserts for Ø60 mm (2.3/8") and Ø89 mm (3½") tubing;
- Pneumatic valve;
- Spare parts kit.
Upon the Buyer's request, inserts for additional tubing sizes can also be supplied.
