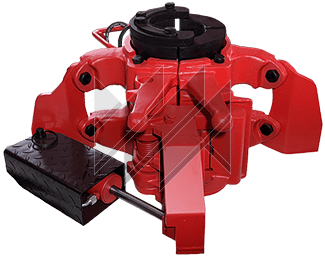

Pneumatic Spider Elevator SE
About the product
The SE Pneumatic Spider-Elevator is designed for gripping and lifting drill pipes, casing strings, and tubing, providing a reliable tool for running and pulling operations
- Diameter
- 73-140
- Load
- 75-150
Technical specifications
| Parameter | SE |
|---|---|
| Nominal Pipe Diameter, mm | 73–140 |
| Rated Load Capacity, tf | 75–150 |
|
Operation |
Pneumatic |
| Bail Eye Inside Diameter, mm | 80 |
| Overall Dimensions, mm | 770×880×390 |
| Weight, kg, max. | 270 |
Description
The SE pneumatic spider elevator is designed for gripping and lifting drill pipe, casing strings, and tubing, providing a reliable solution for tripping operations.
The SE spider elevator with a central latch is a combined lifting tool featuring four slips with replaceable inserts that provide a secure grip on the tubing or casing while minimizing marking and surface damage. A distinctive design feature is the dual safety locking system, which significantly reduces the risk of accidental opening.
SE spider elevators are manufactured from alloy steel, load-tested, and inspected using magnetic particle testing to ensure structural integrity and operational safety.
The quality of SE spider elevators fully complies with API Spec 8A/8C requirements for drilling and oilfield hoisting equipment.
