ShO Single-Line Bails

About the product

TU 05273837.303838.040

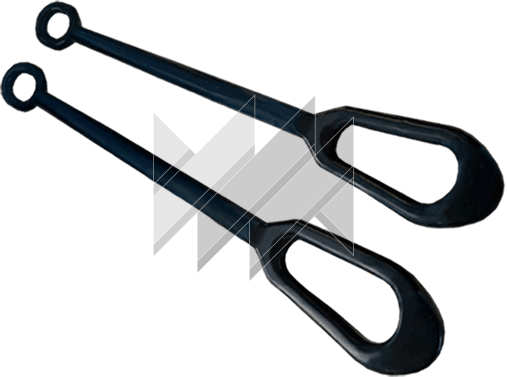

The SHO Single-Strand Links are designed for suspending elevators with drill pipe or casing strings and are attached to the hook block of a drilling rig

Length: 914-4267

Load Capacity: 150-350

All specifications

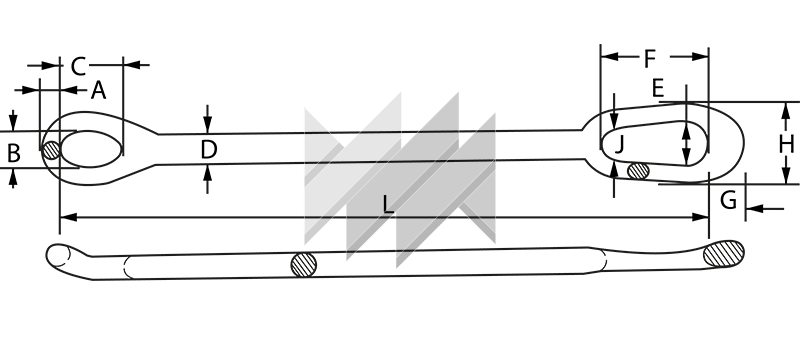

Technical specifications

Designation	Dimensions, mm	Dimensions, inches	Rated Capacity of Pair of Links, tons	Weight of Pair of Links, kg
ShO 150-00.000	68×914	1¾"×36	150	138
ShO 150-00.000-01	68×1219	1¾"×48	150	150
ShO 150-00.000-02	68×1524	1¾"×60	150	155
ShO 150-00.000-03	68×1829	1¾"×72	150	165
ShO 150-00.000-04	68×2134	1¾"×84	150	176
ShO 150-00.000-05	68×2438	1¾"×96	150	185
ShO 200-00.000	70×2400		200	260
ShO 250-00.000	78×1524	2¼×60	250	260
ShO 250-00.000-01	78×1829	2¼×72	250	282
ShO 250-00.000-02	78×2134	2¼×84	250	302
ShO 250-00.000-03	78×2438	2¼×96	250	324
ShO 250-00.000-04	78×2734	2¼×108	250	345
ShO 250-00.000-05	78×3353	2¼×132	250	387
ShO 250-00.000-06	78×4267	2¼×168	250	470
ShO 350-00.000	89×1524	2¾×60	350	335
ShO 350-00.000-01	89×1829	2¾×72	350	365
ShO 350-00.000-02	89×2134	2¾×84	350	396
ShO 350-00.000-03	89×2438	2¾×96	350	426
ShO 350-00.000-04	89×2734	2¾×108	350	456
ShO 350-00.000-05	89×3048	2¾×120	350	487
ShO 350-00.000-06	89×3353	2¾×132	350	517
ShO 350-00.000-07	89×3688	2¾×144	350	551
ShO 350-00.000-08	89×3810	2¾×150	350	563
ShO 350-00.000-09	89×4267	2¾×168	350	609

* Upon customer request, links can be manufactured with a length and elevator/hook seating radius of up to 1800 mm.

Description

Single-leg links ShO are designed to support an elevator with a drill pipe or casing string suspended from the hook block of a drilling rig. ShO links are equivalent to links manufactured by NOV and Blohm + Voss and comply with API Spec. 8C.
