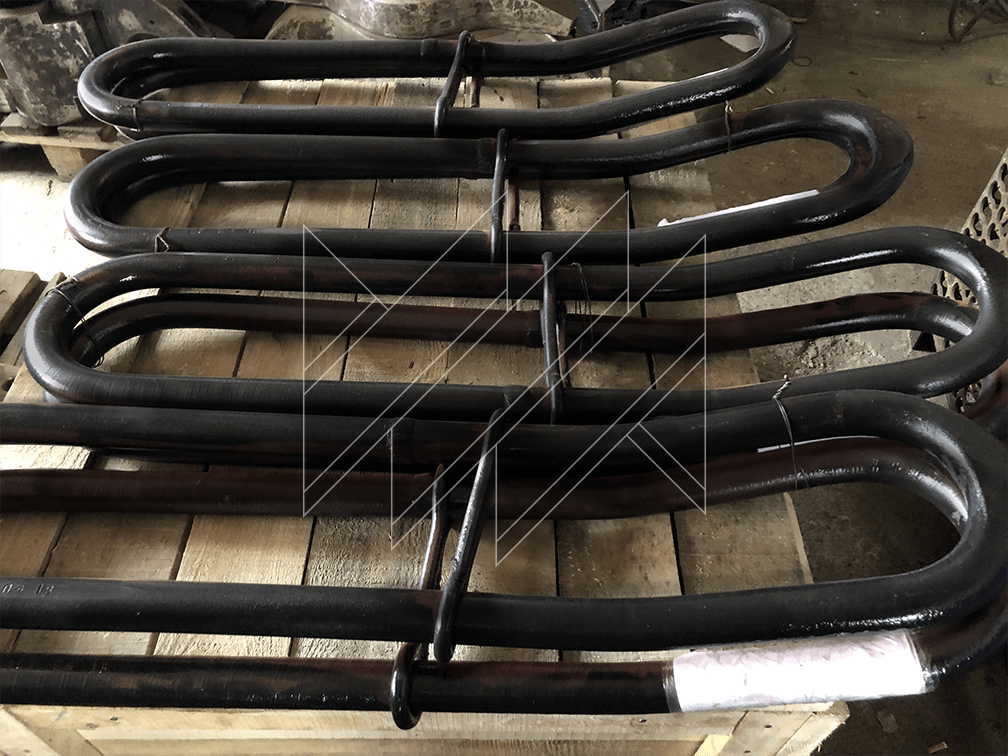

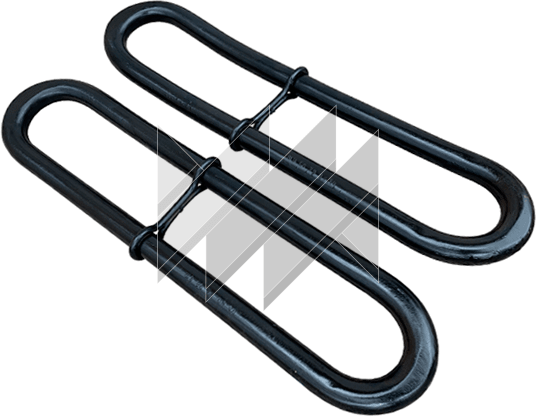

ShE Production Bails

About the product

TU 05273837.303838.040

The SHE Production Links are designed for suspending elevators from the hooks of hoisting systems during running and pulling operations in oil and gas well workover operations

Length: 860-1800

Load Capacity: 28-125

All specifications

Technical specifications

Link Code	Version*	Rated Capacity of a Pair of Links, t	Link Cross-Section Diameter, mm	Distance Between Link Legs, mm	Overall Dimensions, mm		Total Weight of Complete Set, kg, max.
Link Code	Version*	Rated Capacity of a Pair of Links, t	Link Cross-Section Diameter, mm	Distance Between Link Legs, mm	Length	Width	Total Weight of Complete Set, kg, max.
ShE-28	B	28	35	120	860±10	230±10	30
ShE-32	B	32	40	120	860±10	240±10	38
ShE-50	B	50	45	124	920±10	250±10	52
ShE-60	B	60	50	124	920±10	260±10	63
ShE-80	A	80	60	130	1200±10	250±10	112
ShE-100	A	100	70	130	1000±10	270±10	150
ShE-100	A	100	70	130	1340±10	270±10	168
ShE-100	A	100	70	130	1800±10	340±10	230
ShE-125	A	125	75	150	1000±10	350±10	250
ShE-125	A	125	70–75	200	1230±10	350±10	145
ShE-125	A	125	75	200	1800±10	350±10	260

* Version: A — without safety handle, B — with safety handle

Description

ShE elevator links are designed for suspending elevators from the hooks of traveling block systems during tripping operations performed in the workover of oil and gas wells in temperate and cold climatic regions in accordance with GOST 16350-80.

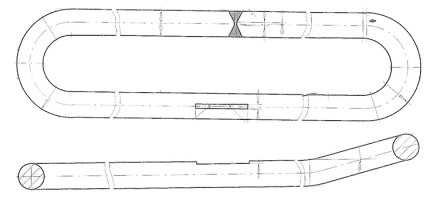

The elevator link is a closed oval-shaped steel loop elongated along one axis. It is manufactured from a round steel blank (welded construction). The upper end of the link is bent at an angle of 15°, while the lower end is bent to a radius. The lower end is equipped with a handle to improve convenience and safety during handling.

ShE elevator links are used in pairs. Their upper ends are suspended from the throat or horns of the traveling block hook, while their lower ends are inserted into the elevator eyes, thereby providing the connection between the hook and the elevator.
