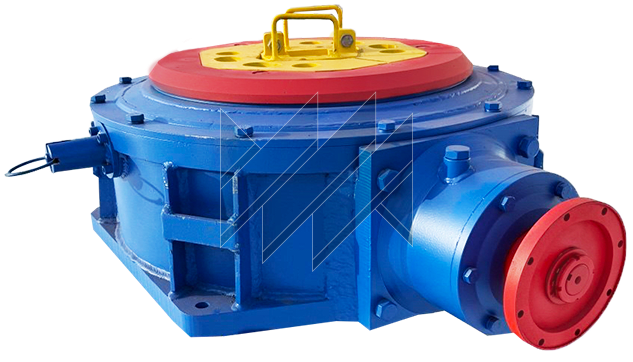

RU-80x400 Cardan-Driven Rotary Table
About the product
The RU-80×400 Cardan Rotary Table is designed for rotating the drilling assembly during drilling, workover, and well completion operations for water, oil, and gas wells, as well as for supporting drill pipe, tubing, and casing strings suspended on an elevator or spider
- Through Hole, mm
- 400
- Load Capacity, tf
- 80
- Torque, kgf·m
- 1200
Technical specifications
| Parameter | Value |
|---|---|
| Drive type | Mechanical via cardan shaft |
| Static load on rotary table, kN (tf) | 800 (80) |
| Maximum torque, kN·m (kgf·m) | 12000 (1200) |
| Maximum rotary drive power, kW | 100 |
| Rotary table speed, s-1 (rpm) | 4 (240) |
| Rotary table bore diameter, mm | 400 |
| Insert opening dimensions, mm | |
| — large insert | 187×187 |
| — small insert | 116×116 or 82×82 |
| Gear transmission | Bevel gear with spiral teeth |
| Drive type | Mechanical via cardan shaft |
| Overall dimensions, mm | 950×640×560 |
| Weight, kg | Max. 720 |
Suitable for manufacturing with KGOM No. 3 insert passage
Available upon request:
- RU03.001 Ring Gear / RU01.002 Pinion Gear
Description
The RU 80×400 cardan-driven rotary table is designed for rotating the drill string during drilling, workover, and servicing of water, oil, and gas wells, as well as for supporting the weight of drill pipe, tubing, and casing strings suspended by an elevator or spider.
