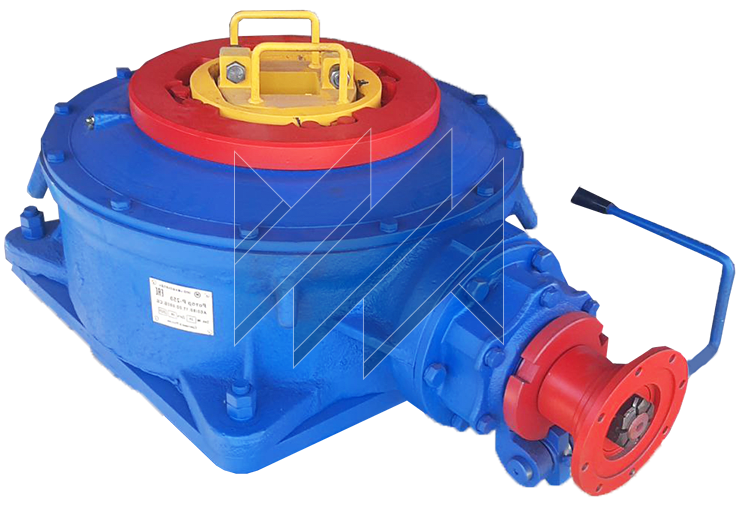

R-250 (A60/80.11.00.000Asb) Cardan-Driven Rotary Table
About the product
The R-250 Cardan Rotary Table (A60/80.11.00.000Asb) is designed for rotating the drilling assembly and supporting drill pipe and casing strings during pipe adding operations
- Through Hole, mm
- 250
- Load Capacity, tf
- 80
- Torque, kgf·m
- 1000
Technical specifications
| Parameter | Value |
|---|---|
| Static load capacity, kN (tf) | 785 (80) |
| Maximum torque, kN·m (kgf·m) | 9.8 (1000) |
| Rotary table speed, s-1 (rpm) | 0.83 (50) – 5 (300) |
| Through-bore diameter, mm | 250 |
| Insert opening dimensions, mm | |
| — large insert | 182×182 |
| — small insert | 82×82 |
| Drive type | Cardan shaft drive |
| Bevel gear | Novikov gear mesh |
| Weight, kg | Max. 360 |
| Overall dimensions, mm | 950×660×330 |
Suitable for manufacturing with KGOM No. 3 insert passage
Description
The R-250 (A60/80.11.00.000A assy.) cardan-driven rotary table is designed for rotating drilling tools and supporting drill pipe and casing strings during pipe make-up operations.
