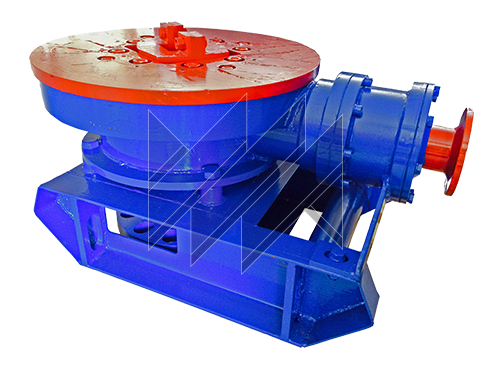

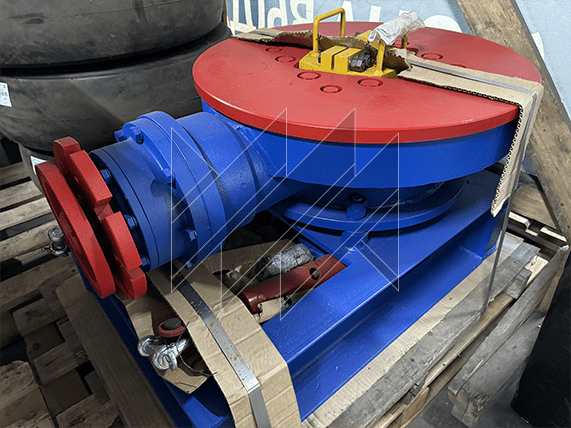

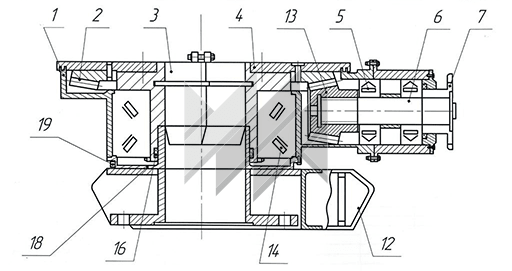

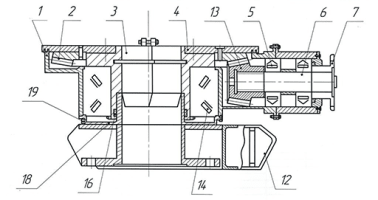

RM-200 Cardan-Driven Rotary Table

About the product

TU 05273837.303838.027

The RM-200 Cardan Rotary Table is designed for rotating the drill bit and supporting the drill string during well repair operations. The RM-200 Mechanical Rotary Table is driven by an A-50 unit through a chain drive

Through Hole, mm: 200

Load Capacity, tf: 60

Torque, kgf·m: 2000

All specifications

Technical specifications

Parameter	Value
Nominal rotary table bore diameter, mm	200
Rated load capacity, t	60
Maximum torque on the rotary table, N·m	20000
Maximum rotary table speed, s^-1 (rpm)	5.0 (300)
Drive type	Mechanical via cardan shaft
Lubrication type
— rotary housing	Industrial oil according to GOST 20799-75, grades I-40A or I-50A
— bearing housing	Universal grease "US-2" according to GOST 1033-79
Overall dimensions, mm, max.
— length	1120
— width	640
— height	522
Weight, kg, max.	540

Suitable for manufacturing with KGOM No. 3 insert passage

Description

The RM-200 cardan-driven rotary table is designed for rotating the drill bit and supporting the drill string during well workover operations. The mechanical RM-200 rotary table is driven by the A-50 workover unit through a chain transmission.

In accordance with GOST 16350-80, the RM-200 is intended for operation in regions with climatic conditions corresponding to categories I2-II2. The mechanical rotary table is installed in accordance with Category I of GOST 15150-69.

The reliable performance of this equipment is confirmed by certification in compliance with GOST RD 08-200-98, R 12.2.141-99, and GOST 4938-78. This certifies that the safe operation of the RM-200 mechanical rotary table in the oil and gas production industry meets federal regulatory requirements.

The declared service life of the rotary table is at least five years. The rotary table is capable of reversible rotation at speeds of up to 5 revolutions per second.
