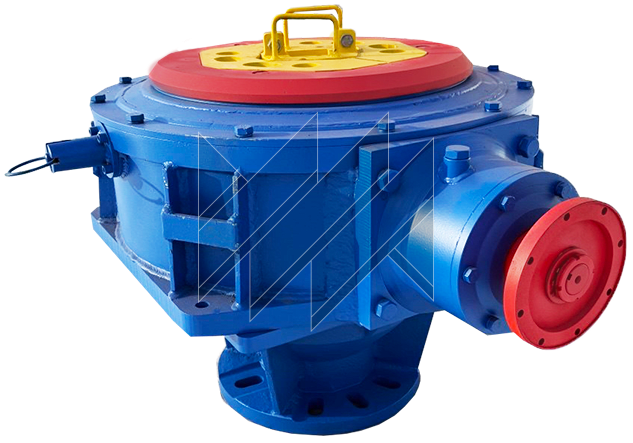

R-400 Cardan-Driven Rotary Table
About the product
The R-400 Cardan Rotary Table is designed for transmitting rotation to the drill pipe string during drilling and fishing operations, as well as for suspending drill pipe or casing strings. It can be equipped with a torque measurement sensor
- Through Hole, mm
- 400
- Load Capacity, tf
- 20
- Torque, kgf·m
- 800
Technical specifications
| Parameter | Value |
|---|---|
| Static load on rotary table, kN (tf) | 200 (20) |
| Maximum torque, N·m (kgf·m) | 8000 (800) |
| Rotary table speed, rpm | 250 |
| Through-bore diameter, mm | 400 |
| Wellhead flange bore diameter, mm | 205 |
| Insert opening dimensions, mm | |
| — large insert | 182×182 |
| — small insert | 82×82 or 120×120 |
| Drive type | Cardan shaft drive |
| Bevel gear | Novikov gear mesh |
Suitable for manufacturing with KGOM No. 3 insert passage
Description
The R-400 cardan-driven rotary table is designed to transmit rotation to the drill string during drilling and fishing operations, as well as to support the weight of drill pipe or casing strings. A version equipped with a torque measurement sensor is available upon request.
