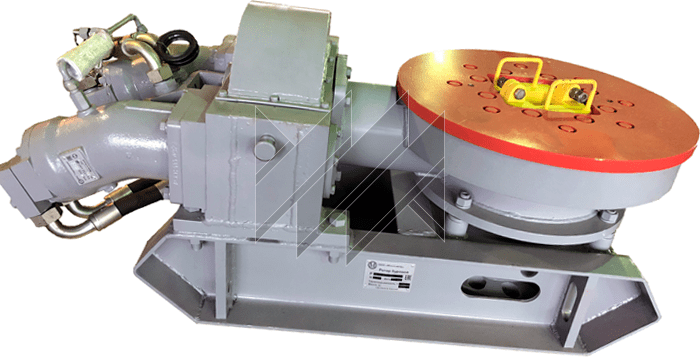

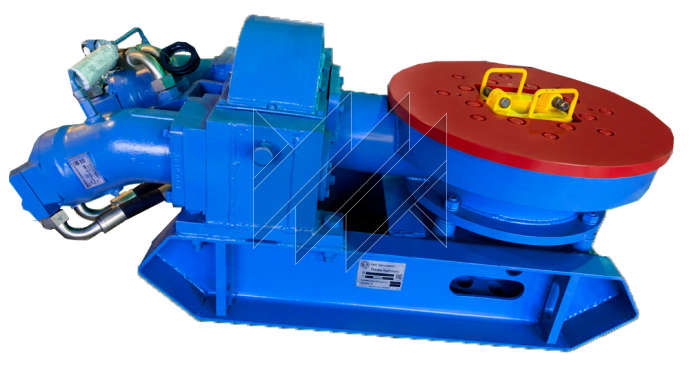

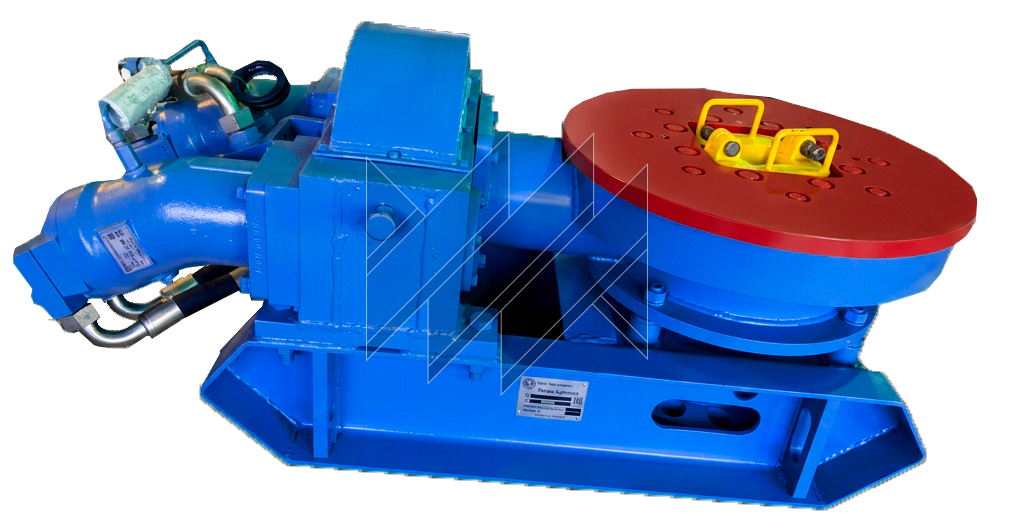

RM-200-01 Hydraulic Rotary Table
About the product
The RM-200-01 Hydraulic Drive Rotary Table is designed for rotating the drilling assembly and supporting drill pipe, tubing, and casing strings during well workover operations
- Through Hole, mm
- 200
- Load Capacity, tf
- 50
- Torque, kgf·m
- 1250
Technical specifications
| Parameter | Value |
|---|---|
| Nominal rotary table bore diameter, mm | 200 |
| Rated load capacity, t | 50 |
| Rotary table torque, N·m (kgf·m), at 20 MPa (200 kgf/cm²), min. | 12500 (1250) |
| Maximum rotary table speed, s⁻¹ (rpm) | 2.3 (140) |
| Gear ratio of the rotary gearbox | 4.36 |
| Reduction gearbox ratio | 4.8 |
| Number of hydraulic motors | 2 |
| Hydraulic motor type | Reversible 3103.112.20 |
| Transmitted power, kW | 2×58.4 |
| Maximum hydraulic fluid pressure, MPa (kgf/cm²) | 20 (200) |
| Rated hydraulic motor flow rate, dm³/s (L/min) | 5.84 |
| Overall dimensions, mm | |
| — length | 1650 |
| — width | 660 |
| — height | 545 |
| Weight, kg | 700 |
| Rotary table rotation direction | Reversible |
Compatible with KGOM No. 3 master bushing upon request.
Description
The RM-200-01 hydraulic drilling rotary table is designed for rotating the drill string and supporting drill pipe, tubing, and casing strings during well workover operations. The rotary table is driven by the hydraulic system of the A-50 service unit or by an independent hydraulic power unit.
