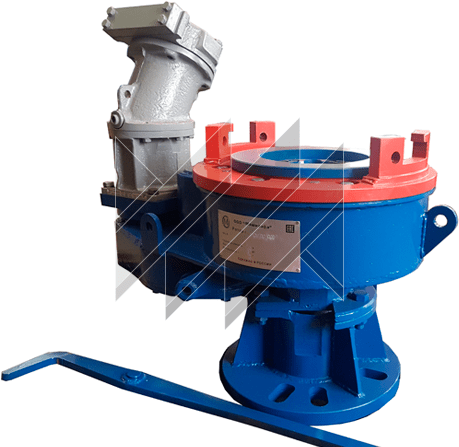

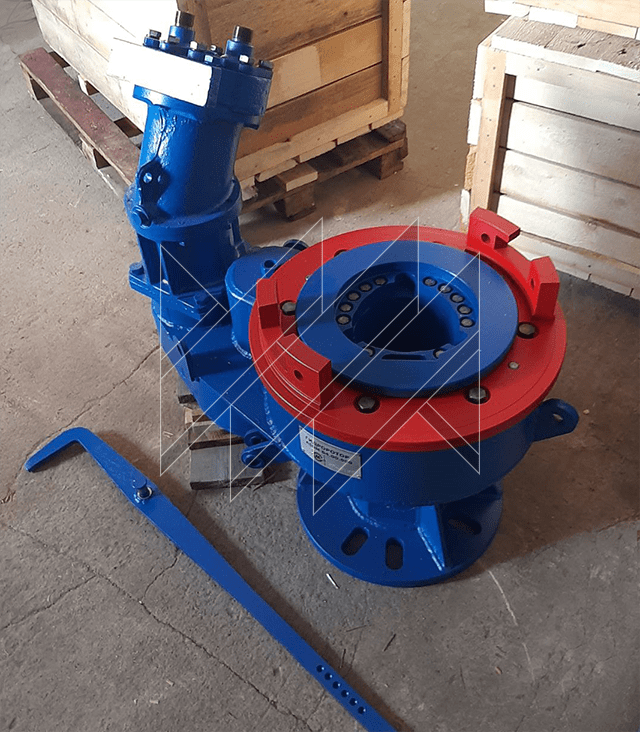

RGP-140 (A50M.04.00.000sb) Hydraulic Rotary Table
About the product
The RGP-140 Hydraulic Drive Rotary Table (A50M.04.00.000sb) is designed for drilling operations, including drilling out cement plugs, as well as for mechanized make-up and break-out of drill pipes and tubing
- Through Hole, mm
- 142
- Load Capacity, tf
- 60
- Torque, kgf·m
- 630
Technical specifications
| Parameter | Value |
|---|---|
| Maximum torque, kN·m (kgf·m) | 6.3 (630) |
| Maximum static load on the rotary table, kN (tf) | 600 (60) |
| Rotational speed, s⁻¹ (rpm), max.: | |
| — Mode 1 | 0.372 (22.3) |
| — Mode 2 | 0.75 (45) |
| — Mode 3 | 1.185 (70) |
| Nominal diameter of make-up and break-out pipes, mm | 60, 73, 89 |
| Rotary table bore diameter, mm | 142 |
| Hydraulic system pressure, MPa (kgf/cm²), max. | 10 (100) |
| Rotary table control | From the UPA-60 service rig control panel |
| Overall dimensions, mm, max.: | |
| — length | 890 |
| — width | 860 |
| — height | 906 |
| Complete assembly weight, kg, max. | 600 |
Compatible with KGOM No. 3 master bushing upon request.
Description
The RGP-140 (A50M.04.00.000SB) hydraulic drilling rotary table is designed for drilling operations (including drilling out cement plugs) as well as for the mechanized make-up and break-out of drill pipe and tubing in temperate and cold (L2 region) macroclimatic zones in accordance with GOST 16350-80. Climate version "U" is intended for ambient temperatures ranging from –45°C to +40°C.
