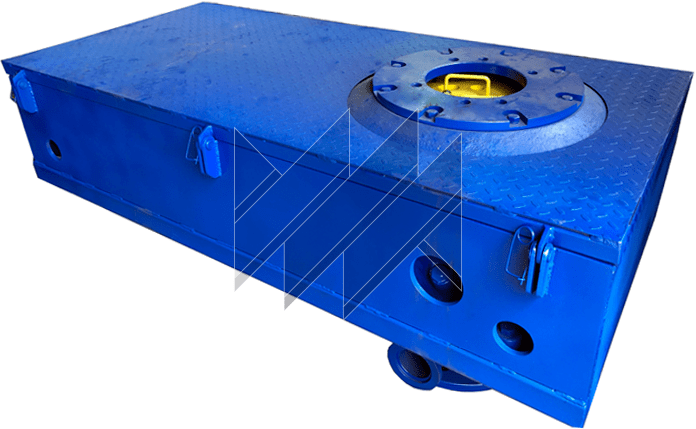

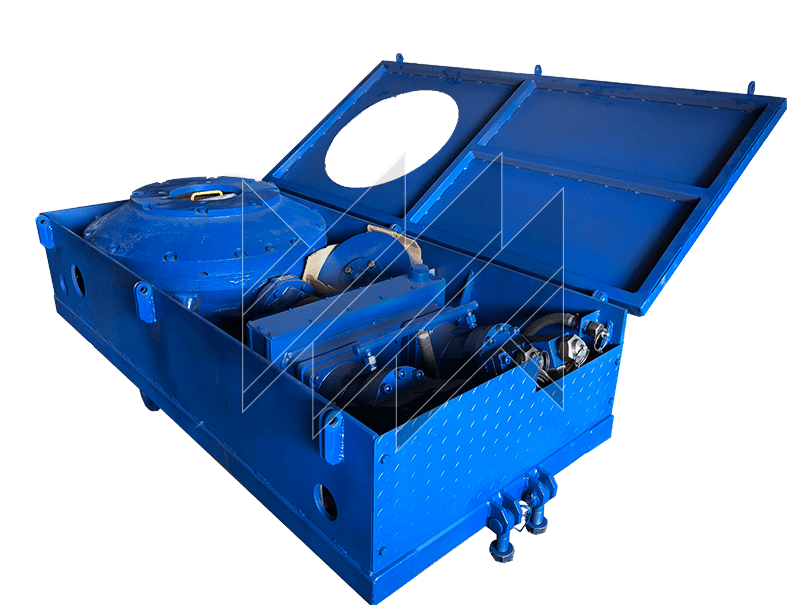

RGP-410 Hydraulic Rotary Table
About the product
The RGP-410 Hydraulic Drive Rotary Table is designed for rotating the drilling assembly and supporting the weight of the drill pipe string during drilling operations
- Through Hole, mm
- 410
- Load Capacity, tf
- 100
- Torque, kgf·m
- 1600
Technical specifications
| Parameter | Value |
|---|---|
| Maximum static load on the rotary table, kN (tf) | 1000 (100) |
| Rotary table bore diameter, mm | 410 |
| Flange bore diameter, mm | 210 |
| Kelly bushing opening size, mm | 80×80, 112×112 |
| Rated hydraulic system pressure, MPa (kgf/cm²) | 20 (200) |
| Rated hydraulic fluid flow, L/min | 410 |
| Maximum torque, kN·m (kgf·m) | 15.7 (1600) / 7.84 (800) |
| Maximum rotary table speed, s⁻¹ (rpm) | 0.9 (54) / 1.67 (100) |
|
Overall dimensions, mm: — length — width — height |
2000 1000 1520 |
| Complete assembly weight (including spare parts kit), kg, max. | 1500 |
Compatible with KGOM No. 3 master bushing upon request.
Description
The RGP-410 hydraulic drilling rotary table is designed for rotating the drill string and supporting the weight of the pipe string during drilling operations. The rotary table is mounted on the casing head flange.
