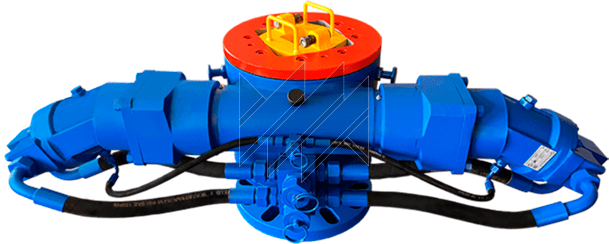

RChG-205 Hydraulic Rotary Table
About the product
The RChG-205 Hydraulic Drive Rotary Table is designed for rotating the drilling assembly and supporting the weight of the drill pipe string during drilling operations
- Through Hole, mm
- 205
- Load Capacity, tf
- 60
- Torque, kgf·m
- 1500
Technical specifications
| Parameter | Value |
|---|---|
| Nominal rotor bore diameter, mm | 205 |
| Rated load capacity, t | 60 |
| Rotor table torque at 20 MPa pressure, not less than | 12,500 N·m – 15,000 N·m |
| Rated rotor table speed (with oil flow to hydraulic motors Q = 360 L/min) | Up to 140 rpm |
| Rated oil flow rate (minimum) | 350 L/min |
| Rated pressure | 20 MPa |
| Maximum short-term pressure | 35 MPa |
| Worm gear ratio | 27 |
| Number of hydraulic motors | 2 pcs. |
| Hydraulic motor type | 3104.112.00, reversible |
| Transmitted power | 2 × 58.4 kW |
| Maximum hydraulic fluid pressure | 20 MPa |
| Rated hydraulic motor flow rate | 175 L/min |
| Overall dimensions, mm, max.: | |
| — Length | 1327 |
| — Width | 555 |
| — Height | 578 |
| Weight | 480 kg |
| Table rotation direction | Reversible |
| Nominal diameter of pipelines and high-pressure hoses (hose connection size – M52×2) | 36 mm |
| Nominal diameter of the drain line (hose connection size – M27×2) | 15 mm |
Compatible with KGOM No. 3 insert upon request.
Description
The RChG-205 hydraulic rotary table is designed for rotating the drill string and supporting the pipe string during drilling operations.
