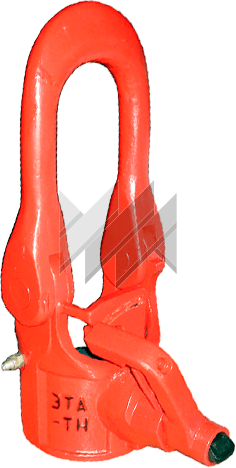

ETA-60TN Elevator
About the product
The ETA-60TN Tubing Elevator with an automatic locking mechanism is designed for gripping tubing couplings or drill pipe tool joints and supporting tubing or drill pipe strings during running and pulling operations in oil and gas well completion and workover applications
- Diameter
- 60-89
- Load Capacity
- 50-60
Technical specifications
| Parameter | ETA-60TN |
|---|---|
| Load capacity, t | 60 |
| Pipe diameter, mm | 60, V60, 73, V73, 89 |
| Overall dimensions, mm | 290×240×590 |
| Weight of complete set, kg | 45 |
Description
The ETA-60TN tubing elevator with an automatic locking device is designed for gripping under the coupling or tool joint and suspending tubing or drill pipe strings during tripping operations in the development and repair of oil and gas wells. The elevator is designed for operation in moderate and cold climatic regions according to GOST 16350-80.
