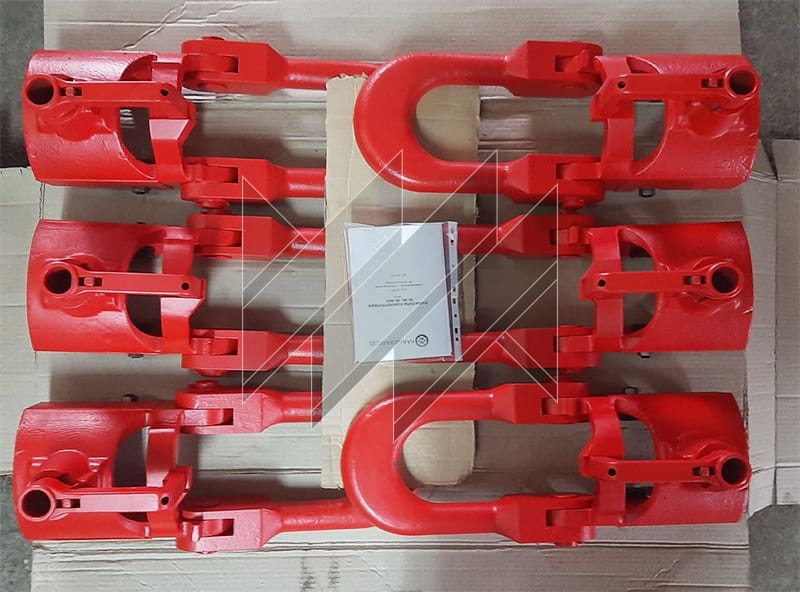

Tubing Elevator ES-80
About the product
The ES-80 Tubing Elevator is designed to engage the tubing coupling and suspend the tubing string during tripping operations
- Diameter
- 33-89
- Load Capacity
- 60-80
Technical specifications
| Parameter | ES-80 |
|---|---|
| Manufacturing method | Body made of high-alloy steel by forging (stamping), providing higher product strength compared to traditional casting. |
| Load capacity, kN (t) | 800 (80) |
|
Pipe diameter GOST 633-80 |
89, NKM-89, V-89 73, NKM-73, V-73 60, NKM-60, V-60 48, V-48 42, V-42 33, V-33 |
| Dimensions, mm | 294 × 250 × 590 |
| Weight, kg | 48 |
| Supply package |
Pipe grips: Tubing 60 mm; Tubing 73 mm; Tubing 89 mm |
| Operating conditions | Cold and moderately cold climatic regions according to GOST 15150-69, operating temperature range from −40 to +40 °C. |
| Additional options | Manufacture of grips for other pipe sizes is available: Ø 33–96 mm. |
Description
The ES-80 tubing elevator is designed for gripping under the coupling and suspending the tubing string during tripping operations.
The elevator body is manufactured from high-alloy steel using a forging (stamping) process, which significantly increases the strength of the product compared to conventional cast designs.
