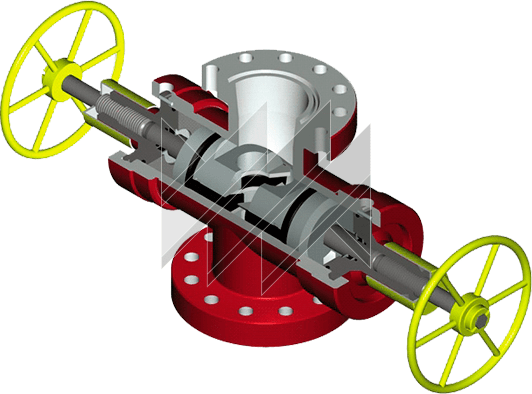

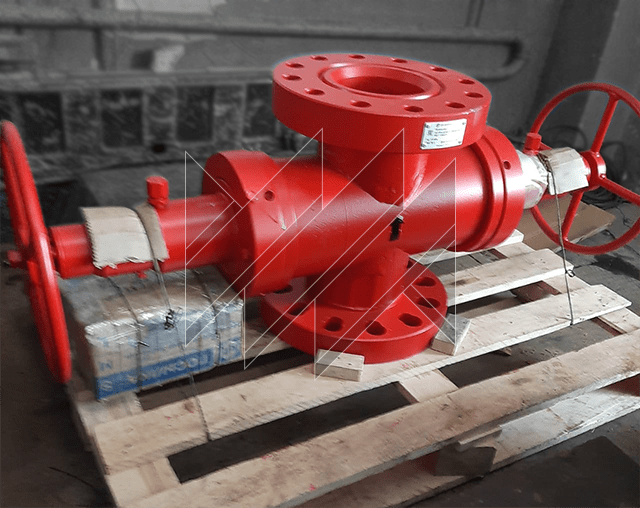

PMT-156×21 Blowout Preventer
About the product
The PMT-156×21 Blowout Preventer is designed for wellhead sealing using pipe rams (when tubing is present in the well), blind rams (when tubing is absent), and pipe-and-cable rams (when tubing and ESP cable are present). PMT ram-type tubing preventers are used to ensure wellhead sealing to prevent and eliminate open flows, as well as oil, gas, and water influxes
Technical specifications
| Parameter | Value |
|---|---|
| Working pressure, MPa | 21 |
| Body bore diameter, mm | 156 |
| Sealed tubing (NKT) diameter, mm | 33–114 |
| Permissible axial load, kg (kN) | |
| — on ram body | 50000 (500) |
| — on rams | 20000 (200) |
| Number of handwheel turns required to close the PMT | 14–15 |
| Operating medium temperature, °C | 100 |
| Overall dimensions, mm | |
| — length | 1226 |
| — height | 490 |
| — width | 400 |
| Weight, kg | 265 |
Description
PMT Series Compact Tubing Blowout Preventers are designed for:
- sealing the wellhead around tubing (NKT) using pipe rams;
- sealing the wellhead in the absence of tubing using blind rams (when a split cable pack-off (GKR) is installed in the upper preventer sub);
- sealing the wellhead around a wireline logging cable;
- manual operation under pressure up to 21 MPa;
- simultaneous sealing of tubing and ESP cable at the wellhead when using tubing-cable rams and a tubing-cable centralizer.
PMT Series Compact Tubing Blowout Preventers are manufactured in accordance with TU 05273837.303838.014.
