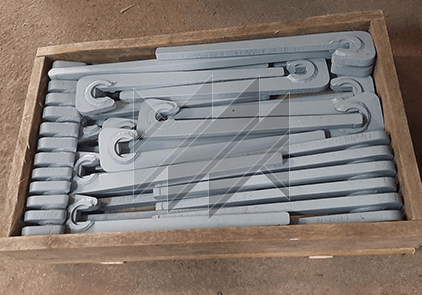

KSh, KShR Manual Rod Tong
About the product
The KShR Manual Sucker Rod Wrench is designed for the manual make-up and break-out of sucker rods during oil well servicing and workover operations
- Diameter
- 13-25
- Torque
- 320-1040
Technical specifications
| Parameter | KShR-13 | KShR-16 | KShR-19/22 | KShR-25 |
|---|---|---|---|---|
| Wrench opening, mm | 13 | 16 | 19,22 | 25 |
| Maximum torque, Nm | 320 | 320 | 640 | 1040 |
| Weight, kg | 3.1 | 3.1 | 3.1 | 3.3 |
| Overall dimensions, mm, max. | ||||
| — length | 500 | 500 | 500 | 500 |
| — width | 104 | 104 | 104 | 104 |
| — height | 33 | 33 | 33 | 38 |
Description
The KShR manual sucker rod wrench is designed for manual make-up and break-out of sucker rods during oil well servicing operations.
The KShR wrench consists of a one-piece forged body with a head featuring an opening sized to fit the square section of sucker rods with diameters of 16 mm, 19–22 mm, and 25 mm. During operation, the opening is placed onto the square section of the rod, allowing the threaded connection of the sucker rod to be tightened or loosened.
