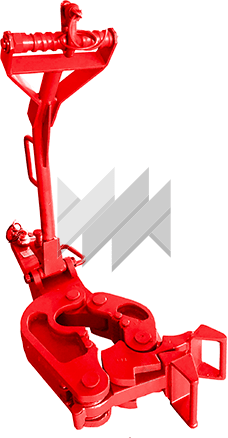

KMT Power Pipe Tong
About the product
It is designed for final make-up and break-out of threaded connections on drill pipe, casing, and tubing during running and pulling operations in oil and gas well drilling and workover applications
- Diameter
- 40-271
- Force
- 5000
- Torque
- 3550
Technical specifications
| Parameter | Value |
|---|---|
|
Maximum torque, kN·m (kgf·m) |
34.3 (3550) |
|
Permissible force at the end of the lever, kN (kgf), max. |
49 (5000) |
|
Nominal diameters of make-up and break-out pipes, mm |
40–271 |
|
Available configurations, mm |
— interchangeable jaw 40–85 — interchangeable jaw 60–114 — interchangeable jaw 114–166 — interchangeable jaw 168–198 — interchangeable jaw 194–219 — interchangeable jaw 216–245 — interchangeable jaw 245–271 |
|
Overall dimensions, mm |
1000×1025×430 |
|
Weight of the wrench assembly with suspension, kg |
141 |
* Jaws: standard supply set
Description
Designed for final make-up and break-out of threaded connections of drill pipes, casing pipes, and tubing during tripping operations in drilling and well workover. It offers an excellent combination of load capacity across the entire gripping range, compact dimensions, low weight, and high reliability. An optimal solution for companies providing well workover services.
