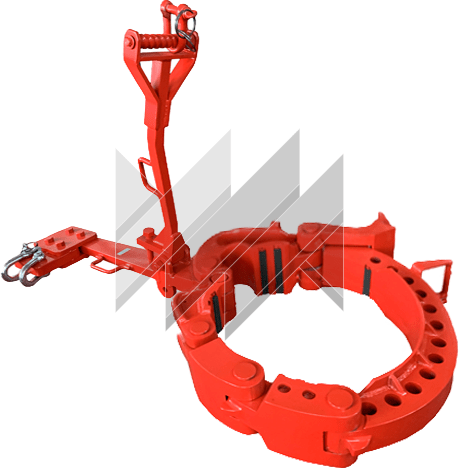

KMBO Power Drill Tong
About the product
The KMBO Power Drill Tong is designed for final make-up and break-out of threaded connections on drill pipe, heavyweight drill pipe, and casing during running and pulling operations in oil and gas well drilling
- Diameter
- 73-533
- Force
- 8000
- Torque
- 13766
Technical specifications
| Parameter | Value |
|---|---|
| Maximum torque, kN·m (kgf·m) |
135 (13766) |
| Permissible force at the end of the lever, kN (kgf) | 80.3 (8000) |
| Nominal diameter of make-up and break-out pipes (tool joints), mm |
73–114, 102–299, 324–351, 340–432, 426–451, 473–533 |
| Overall dimensions, mm, max. | 1600×750×1090 |
|
Weight, kg — assembled with 60–102 jaw, without suspension — assembled with 60–102 jaw, with suspension — with interchangeable jaw set and suspension |
177 190 350 |
| Standard supply set |
KMBO Power Tong 00.00.000, 1 pc. Interchangeable jaw set: — Jaw 140–178, 1 pc. — Jaw 176–212, 1 pc. — Jaw 73–114, 1 pc. — Jaw 324/351, 1 pc. — Jaw 426/451, 1 pc. Spare parts kit: — Bushing, 2 pcs. — Die, 4 pcs. — Bolt, 8 pcs. — Spring, 2 pcs. |
Description
The KMBO drilling power tong is designed for final make-up and break-out of threaded connections of drill pipes, drill collars, and casing pipes during tripping operations in oil and gas well drilling. The use of specially selected steel has significantly reduced the weight while increasing the strength and, consequently, the service life of the tong.
