KMP-G Suspended Power Tong with Hydraulic Drive

About the product

TU 05273837.303838.029

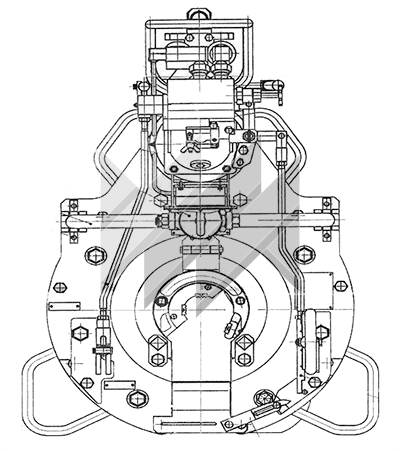

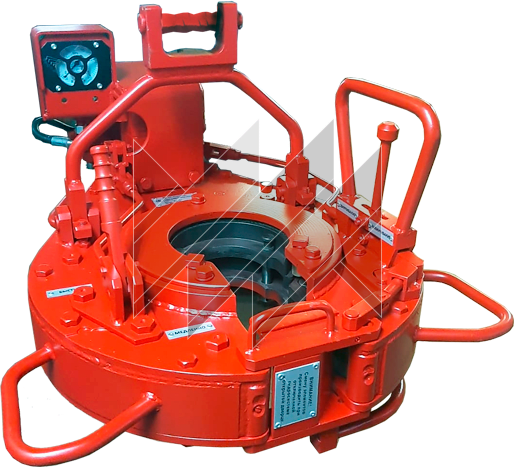

The KMP-G Hydraulic Power Tong and the 3KMS-G Stationary Hydraulic Power Tong are designed for making up and breaking out tubing and drill pipe during running and pulling operations in routine well servicing and major workover applications

Diameter: 48-114

Frequency: 0,008-1,9

Torque: 1050-1250

All specifications

Technical specifications

Model	KMP-G	2KMP-G	3KMS-G
Maximum Torque, kN·m (kgf·m):
— High Gear:
at P = 16 MPa	1.98 (200)	1.7 (170)	1.7 (170)
at P = 20 MPa	3.3 (330)	2.3 (230)	2.3 (230)
— Low Gear:
at P = 16 MPa	9.27 (927)	7.5 (750)	7.5 (750)
at P = 20 MPa	10.24 (1250)	10.5 (1050)	10.5 (1050)
Gripping Device Rotation Speed Under Load at P ≤ 16 MPa, rpm:
— High Gear	0.04–1.51	0.4–1.9	0.4–1.9
— Low Gear	0.008–0.32	0.09–0.4	0.09–0.4
Nominal Pipe Diameter, mm	48, 60, 73, 89, 102, 114	48, 60, 73, 89	48, 60, 73, 89
Rated Pressure, MPa (kgf/cm²)	16 (160)	16 (160)	16 (160)
Maximum Pressure, MPa (kgf/cm²)	20 (200)	20 (200)	20 (200)
Minimum Pressure, MPa (kgf/cm²)	3 (30)	3 (30)	3 (30)
Torque Arm Length, mm	700	625	—
Overall Dimensions, mm
— With Backup Device	1130×670×725	1065×590×725	980×590×710
— Without Backup Device	1130×670×725	1065×590×725	—
Assembly Weight, kg
— With Backup Device	370	360	330
— Without Backup Device	320	309	—

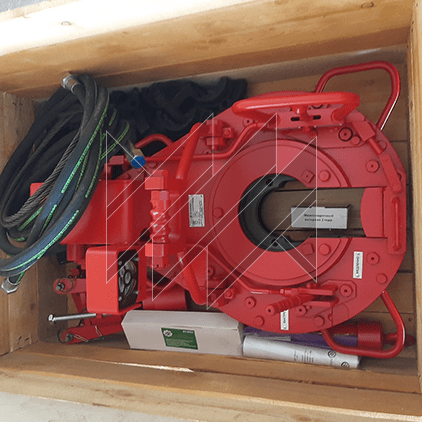

Description

The KMP-G hydraulic suspended power tong and the 3KMS-G stationary power tong are designed for making up and breaking out tubing and drill pipe during tripping operations performed in well servicing and workover operations. They are intended for use with A-50, UPA-60 AzINMASH, and similar hoisting units in temperate and cold macroclimatic regions (Region I2) in accordance with GOST 16350-80, at ambient temperatures from −40°C to +40°C.

The KMP-G power tong includes:

a suspension compensator for vertical movement;
a hydraulic system providing smooth adjustment of torque and gripping device rotation speed;
a two-speed rotary drive with a gear transmission and a protective gate covering the tong opening;
a cam-type pipe gripping mechanism;
a lever-type hydraulic backup device with a set of interchangeable components to absorb reaction torque;
a control system with operating handles mounted directly on the tong.

The KMP-G suspended power tong combines high torque output, ease of operation, simple maintenance, reliability, and long service life, making it an efficient solution for tubing and drill pipe handling during well servicing operations.
