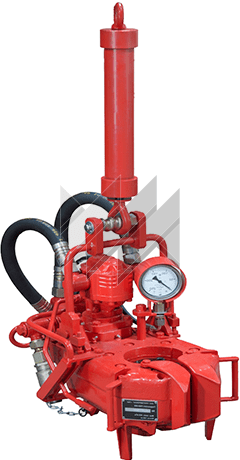

Hydraulic Tong GKSh-300
About the product
The GKSh-300 Hydraulic Power Tong is designed for fast, safe, and precise making up and breaking out of sucker rods
- Diameter
- 16-25
- Frequency
- 107-160
- Torque
- 161-322
Technical specifications
| Parameter | Value |
|---|---|
| Hydraulic Flow Rate to the Power Tong, m³/s (L/min) | |
| Minimum | 3.3×10-4 (20) |
| Rated | 20.0×10-4 (120) |
| Maximum | 30.0×10-4 (180) |
| Discharge Pressure, MPa (kgf/cm²) | |
| Rated | 10 (100) |
| Maximum | 20 (200) |
| Return Line Pressure, MPa (kgf/cm²) | Not more than 0.5 (5) |
| Rotor Speed, s-1 (rpm) | |
| At rated flow rate | 1.78 (107) |
| At maximum flow rate | 2.66 (160) |
| Rotor Torque, N·m (kgf·m) | |
| At rated discharge pressure | 1,580 (161) |
| At maximum discharge pressure | 3,160 (322) |
| Weight, kg | 145 max. |
| Overall Dimensions, mm | 722×380×640 |
Description
The GKSh-300 hydraulic power tong is designed for fast, safe, and precise making up and breaking out of sucker rods with nominal diameters of Ø16 mm (5/8"), Ø19 mm (3/4"), Ø22 mm (7/8"), and Ø25 mm (1"). The unit is manufactured in UHL1 climatic version in accordance with GOST 15150 and is designed for operation at ambient temperatures from −40°C to +50°C.
Main Components
- gear reducer;
- FP 30.61-19T gear hydraulic pump;
- SD-14 hydraulic directional control valve with pressure relief valve;
- hydraulic pump control lever;
- backup wrench for Ø16 mm (5/8"), Ø19 mm (3/4"), and Ø22 mm (7/8") sucker rods;
- suspension cylinder;
- suspension assembly;
- latches;
- pressure gauge;
- rotor assembly with jaws for Ø5/8", 3/4", and 7/8" sucker rods.
Optional Components and Accessories
- safety installation tool for the inner ring;
- inner ring assembly for Ø25 mm (1") sucker rods;
- RVD25.110.4000.0.3.12/12.M33×1.5/M33×1.5-U1 high-pressure hoses;
- backup wrench for Ø25 mm (1") sucker rods;
- roller clamp;
- clamp;
- Ø12 mm steel wire rope;
- Ø12 mm wire rope thimbles;
- Ø12 mm wire rope clips;
- grease gun;
- quick-disconnect coupling;
- SPTA (Spare Parts, Tools and Accessories) kit.
