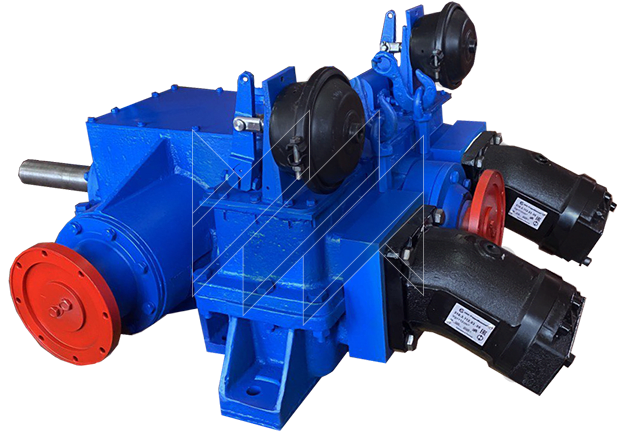

Transfer gearbox UPA60/80.20.00.000 Assy

About the product

TU 05273837.303838.021

The transfer gearbox of the UPA-60A and UPA-60A 60/80 workover and well servicing units for oil and gas wells (hereinafter referred to as the transfer gearbox) is a power transmission component that transfers torque from the chassis engine through the power take-off system to the hydraulic rotary drive, hydraulic jacks and compressor unit, and via the transmission to the mud pump and main winch.

Technical specifications

Name	Used in Equipment	Dimensions	Weight
UPA60/80.20.00.000SB Transfer Gearbox	UPA60/80	≈ 2400×1340×1260 mm	≈ 600 kg

Installation, preparation and operation of the transfer gearbox as part of the workover rig shall be carried out in accordance with the "Operation Manual and Installation and Adjustment Instructions" for the UPA-60A (UPA-60A 60/80) workover rig intended for servicing and repairing oil and gas wells.

Item No.	Part Number	Name	Qty
1	UPA60/80.20.00.006	Shaft	1
2	UPA60/80.20.00.010	Shaft	1
3	A50M.03.00.032	Gear	1
4	A50M.03.00.033	Gear	1
5	UPA60/80.20.00.004	Gear Coupling	2
6	A50M1.03.00.003	Shaft	2
7	UPA60/80.20.00.007	Gear	1
8	A50M1.03.00.002	Coupling	2
9	UPA60/80.20.00.001U	Gearbox Housing	1
10	UPA60/80.20.00.002U	Housing Cover	1
11	A50M.03.00.045	Lever	2
12	310.4.112.006	Pump, GOST 15150-69	2
13	2313	Bearing, GOST 8328-75	2
14	7313	Bearing, TU 37006.162-89	2
15	412	Bearing, GOST 8338-75	2
16	7614	Bearing, GOST 333-79	2
17	A50M.05.00.024K	Flange	2
18	112	Bearing, GOST 8338-75	4
19	208	Bearing, GOST 8338-75	2
20	212	Bearing, GOST 8338-75	2
21	1.2-90-120-4	Oil Seal, GOST 8752-79	2
22	STP 26-71	Ring 90	2
23	A50M.03.00.002	Shift Fork	2
24	UPA60/80.20.07.000	Cover	1
25	UPA60/80.20.04.000	Cover	1
26	UPA60/80.20.00.008K	Cup Housing	1
27	UPA60/80.20.00.011	Cup Housing	1
28	A50M.03.00.003	Cover	1
29	UPA60/80.20.00.009	Bearing Cover	1
30	A50M1.03.00.005	Bushing	2
31	A50M1.03.00.005-01	Bushing	2
