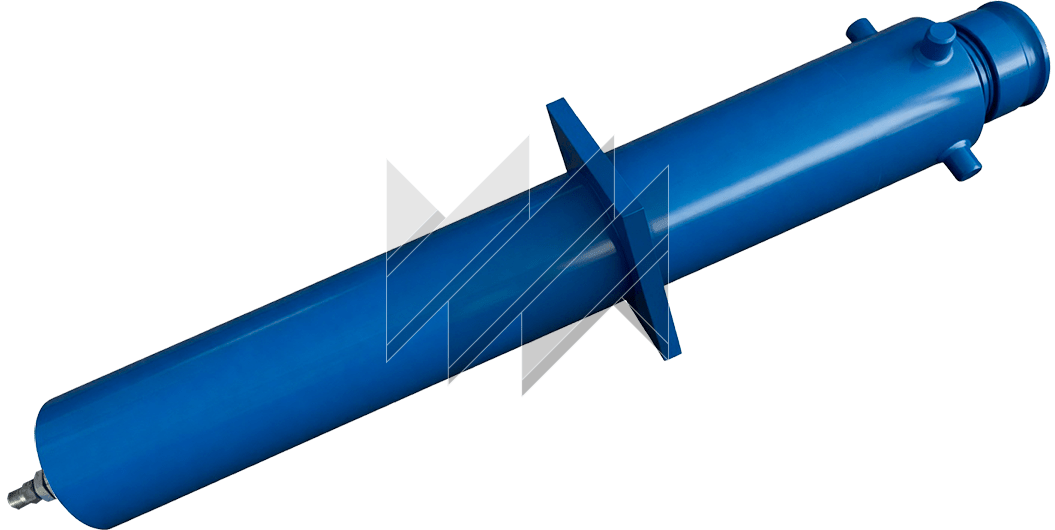

Hydraulic Cylinder GC-140.120×715.55
About the product
The hydraulic cylinder converts hydraulic fluid pressure into mechanical force, providing piston movement. It guides and controls the movement of the crane supports, while the hydraulic directional control valve regulates the fluid flow for precise system operation. Sealing elements prevent leakage and protect against contaminants, ensuring reliable operation. The hydraulic lock valve holds the rod in position, preventing unintended movement.
Technical specifications
| Parameter | Value |
|---|---|
| Piston Diameter, mm | 140 |
| Rod Diameter, mm | 120 |
| Piston Stroke, mm | 715 |
| Rated Pressure, MPa | 25 |
| Maximum Pressure, MPa | 38 |
| No-Load Pressure, max., MPa | 1.6 |
| Breakaway Pressure, max., MPa | 2.4 |
| Rod Pushing Force, kN | 384.6 |
| Rod Pulling Force, kN | 102.0 |
| Weight, kg | 150 |
